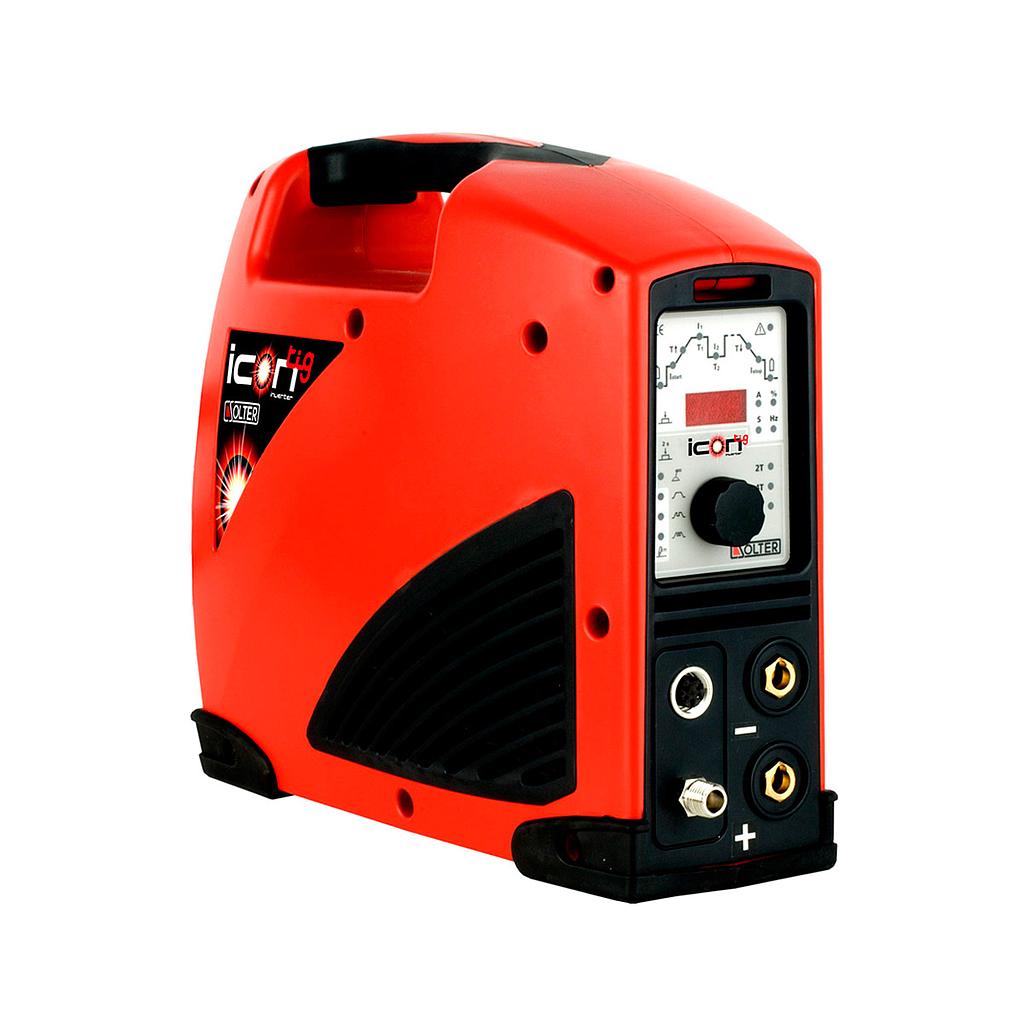

ICONTIG 1990 HF PULSE
📌 The TIG welder ICONTIG 1990 HF PULSE by Solter is synonymous with precision and advanced technology. Designed to deliver flawless welds, even on the most demanding materials such as stainless steel and nickel alloys, this machine ensures total process control thanks to its INVERTER technology and high-frequency pulsed arc.
Its compact, robust, and reinforced structure is built to last, while its intuitive digital display allows for precise power and pulse adjustments with ease. Ideal for professionals seeking high-quality results without complications, the ICONTIG 1990 HF PULSE is an investment in performance, durability, and energy efficiency. Take your work to the next level with Solter!
Share this product:
Available Packs
Ref:
K0014
ICONTIG 1990 HF PULSE + TORCH SR-17 4M
Ref:
K0220
ICONTIG 1990 HF PULSE + TORCH SR-17 4M + CASE
Main Features:
✅ High-precision HF ignition: Ensures a contactless arc start, preventing material contamination.
✅ High-Frequency Pulsed TIG Mode: Allows for exceptional control of the weld pool, reducing distortions and enhancing the weld’s aesthetics.
✅ Intuitive digital interface: Quick and precise adjustment of all parameters thanks to its single control selector.
✅ High-precision TACK mode: Quick tacking with full pulse control, achieving uniform and aesthetic welds on thin sheets and delicate materials.
✅ High energy efficiency (81%): Optimal performance with lower energy consumption.
✅ 60% duty cycle at 160A: Designed for long working hours without interruptions.
✅ Smart ventilation: Minimizes dust accumulation, extending the equipment’s lifespan.
✅ Compatible with electric generators: Ideal for outdoor work or locations without stable power access.
✅ Total protection system: Includes thermal sensors and voltage monitoring to prevent overloads.
💡 The ICONTIG 1990 HF PULSE is designed for the most demanding professionals, ensuring precision, durability, and unmatched performance.
General
|
|
---|---|
Intensity at 60%(100%) a 40ºC | 140A (110A) |
Intensity MAX. | 180A |
Regulations | EN 60974-1, EN 60974-10 |
Regulation | 10 - 180A |
Duty Cycle at 40ºC | 45% |
Tech
|
|
Usable electrodes MMA | 1,6mm - 4,0mm |
Usable electrodes TIG | 1,6mm - 2,4mm |
Frecuencia de pulsado TIG | 500Hz |
Electric
|
|
Supply Voltage | 230V-1ph |
Fuse | 16A |
Absorved power max. | 6,5KVA |
Voltage range | 10-180A (10,4 - 17,2V) |
OCV | 80V |
Structural
|
|
Dimensions | 320x135x285 mm |
Protection index | IP23C |
Regulation board | iCONTIG “pulse” |
Weight | 4,9 kg |
Ventilation | Doble / Double AUTO |
Technologies
|
|
Tecnologies | TIG HF , TIG lift , TIG pulse , TAC , Digital , Generator OK |
