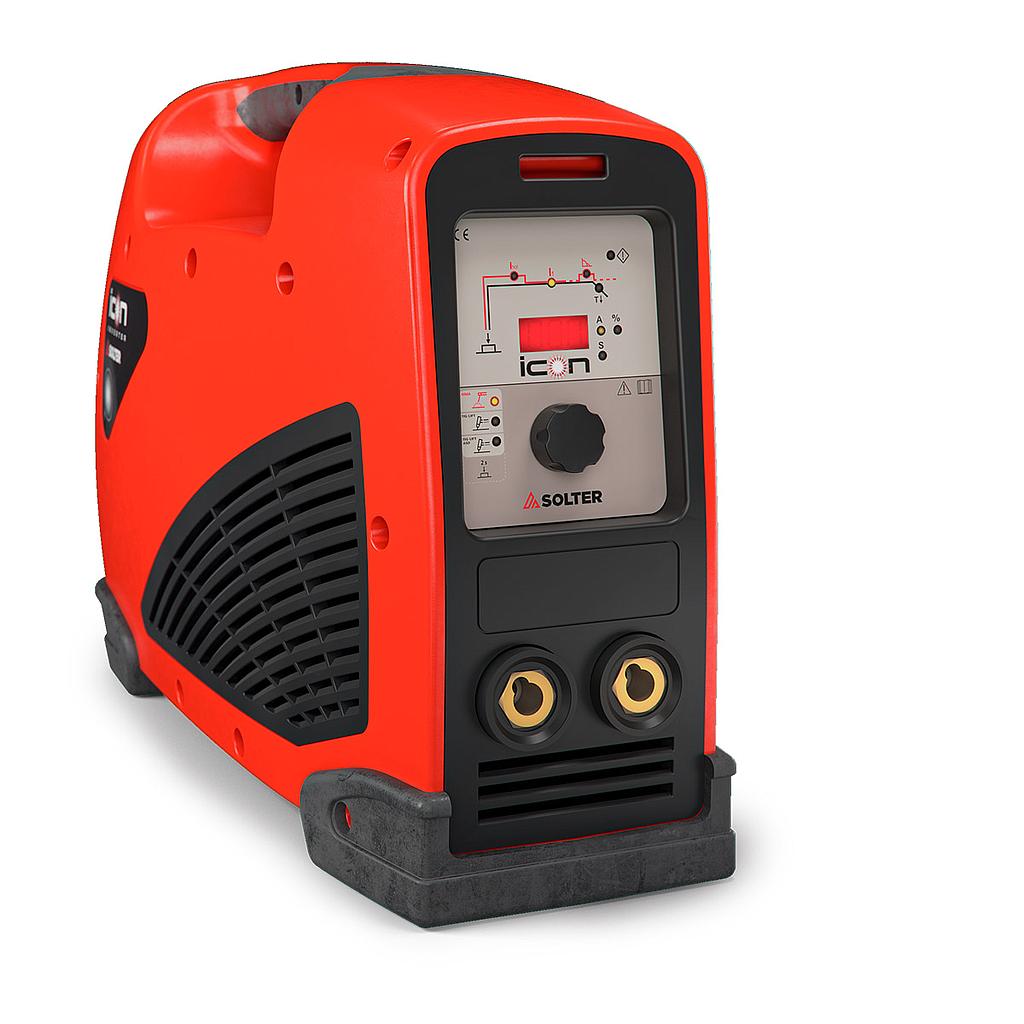

ICON 2055 PRO
· 200Amp Inverter at 60%.
· Equipped with welding accessories.
· Valid for generator.
· TIG by Lift-Arc.
· Digital front.
· DDR Anti-Shock construction.
Share this product:
Available Packs
![[K0218] ICON 2055 PRO + CASE](/web/image/product.product/47084/image_1920/350x350)
Ref:
K0218
ICON 2055 PRO + CASE
Main features:
Talking about professional welding is talking about the iCON product line. Due to its patented and innovative DDR construction design, due to its great capacity to work under intensive conditionsand demanding environments and due to its unmatched results in terms of reliability and performance, this is undoubtedly the best option for the most demanding professionals.
· Arc-Sense regulation offers stability and control regardless of the electrode-material distance.
· Double automatic ventilation that only acts when the equipment requires it.
· Stand-by position, when the equipment is not in operation.
· Equipped with Anti-stick, Arc-Force, Hot Start and Lift-Arc (TIG) devices.
· Can be connected to generators with a wide range of working voltages.
|
General
|
|
|---|---|
| Intensity at 60%(100%) a 40ºC | 200A (140A) |
| Intensity MAX. | 200A |
| Regulations | EN-60974-1, EN-60974-10 |
| Regulation | 10 - 200A |
| Duty Cycle at 40ºC | 60% |
|
Tech
|
|
| Usable electrodes MMA | 1,6 - 4,00 mm |
| Usable electrodes TIG | 1,0 - 3,2 mm |
|
Electric
|
|
| Supply Voltage | 230V - 1Ph |
| Fuse | 16A |
| Ieff | 29,7A |
| Absorved power max. | 8,5KVA |
| Voltage range | 180V - 300V |
| OCV | 68V |
| I₁max | 42A |
|
Structural
|
|
| Dimensions | 430x175x325mm |
| Protection index | IP23C |
| Regulation board | SOLTER ICON DIGITAL |
| Weight | 6,4Kg |
| Ventilation | DOBLE - AUTO |
