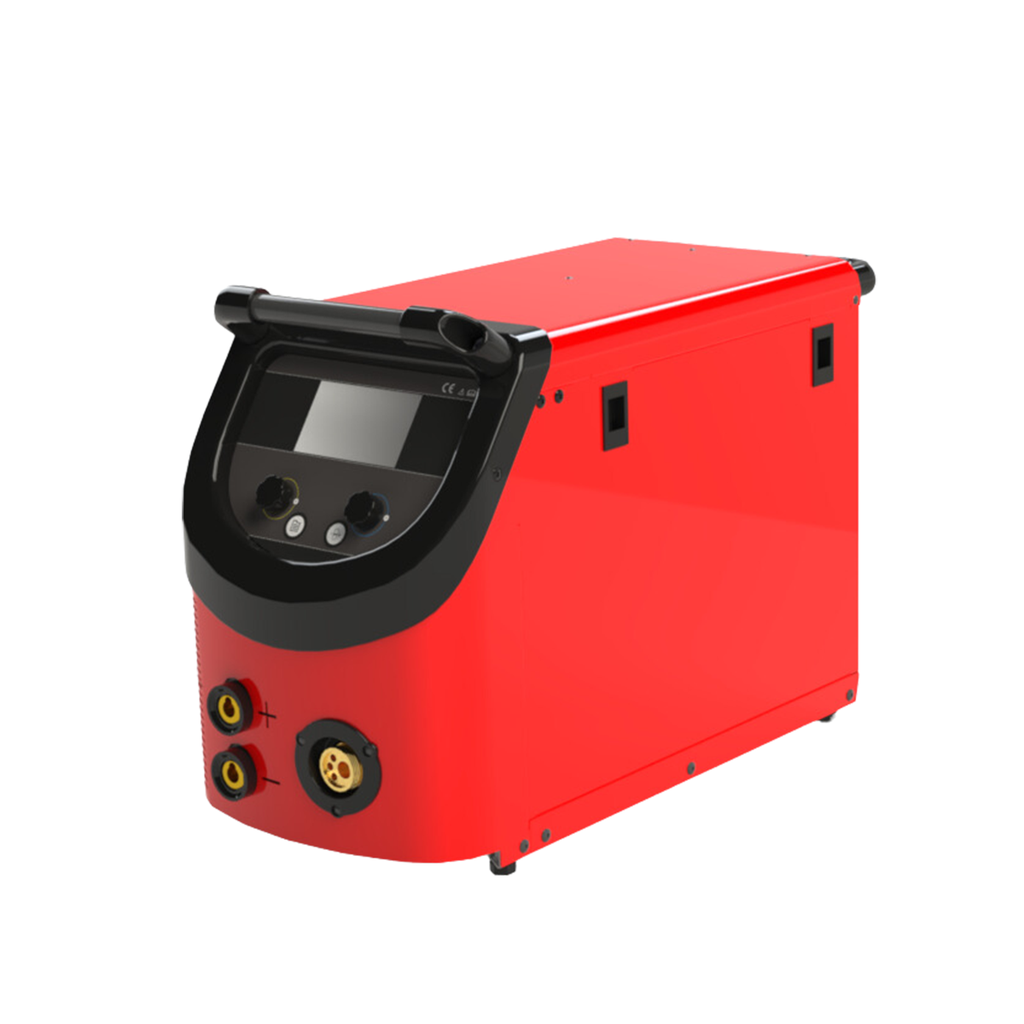

AEROPROCESS 2000 C PULSE
📌 AEROPROCESS 2000 C PULSE – Premium Performance for High-Precision Welding
Designed for demanding professionals, the AEROPROCESS 2000 C PULSE redefines synergic multiprocess MIG welding with its cutting-edge pulsed arc technology. Delivering 200A at 45% and featuring an intelligent digital control, it ensures flawless results without spatter, even on complex materials such as steel, aluminum, and stainless steel.
Connection: Single-phase 230V, compatibility with D300 (15kg) spools, and a robust construction make this machine the ultimate choice for welders seeking quality, reliability, and extreme precision.
Invest in cutting-edge technology and take your work to the next level.
Share this product:
Key Features:
✅ Multiprocess Pulsed Wire Welding Machine: Welds using MIG-MAG (with and without gas), TIG Lift-Arc, and MMA, covering all workshop and on-site needs.
✅ Intelligent Synergic Adjustment: Simply select the material, and the machine automatically optimizes the welding parameters.
✅ Spatter-Free Pulsed Arc: Cleaner welds with no need for post-processing, even on aluminum and stainless steel.
✅ Adjustable Crater Filling: Seamlessly closes the weld bead without cracks or porosity, ensuring a flawless finish.
✅ Ideal for Gap Welding: Fills open joints stably and without defects.
✅ Total Welding Control: Adjust via wire speed (m/min) or current (A) depending on material thickness.
✅ Real-Time Precision Monitoring: Displays voltage and current while welding and allows you to review average values afterward.
✅ Consumable Optimization: Accurately calculates wire consumption, helping manage job costs efficiently.
✅ Process Memory: Save up to 10 custom settings for quick switching between different materials.
✅ Full Compatibility with Various Metals: Achieve outstanding results on carbon steel (SG3), stainless steel (Ss-309, Ss-316), aluminum (AL-5356, AL-4043), copper-silicon (CuSi3), and flux-cored wires (Fc-Rutile, Fc-Basic, Fc-316, E71T-GS self-shielded).
💡 With the AEROPROCESS 2000 C PULSE, every weld is more efficient, faster, and precise. Equip yourself with the best and enhance your professional performance.
General
|
|
---|---|
Intensity at 60%(100%) a 40ºC | 170A (130A) |
Intensity MAX. | 200A |
Regulations | UNE EN 60974-1 EN 60974-10 Clase A |
Regulation | 20 - 200A (15-24V) |
Duty Cycle at 40ºC | 45% |
Tech
|
|
Usable wire coil | D300 - 15kg |
Usable electrodes MMA | 1,6mm - 4,0mm |
Usable electrodes TIG | 1,6mm - 3,2mm |
Motor max power | 30W |
Wire feeder rolls | 2R |
Wire speed | 0.....10m/min |
Electric
|
|
Supply Voltage | 230V - 1Ph |
Fuse | 25A |
OCV | 74V |
Structural
|
|
Dimensions | 600x272x380mm |
Protection index | IP23 |
Regulation board | SOLTER DIGITAL |
Weight | 19 kg |
Ventilation | FORCED |
Technologies
|
|
Tecnologies | Digital , Gas / No gas , Synergic , MIG pulse |
Uncategorized
|
|
Hilo utilizable gas | 0,6 - 1,0mm |
Hilo utilizable no gas | 0,8 - 1,2mm |
