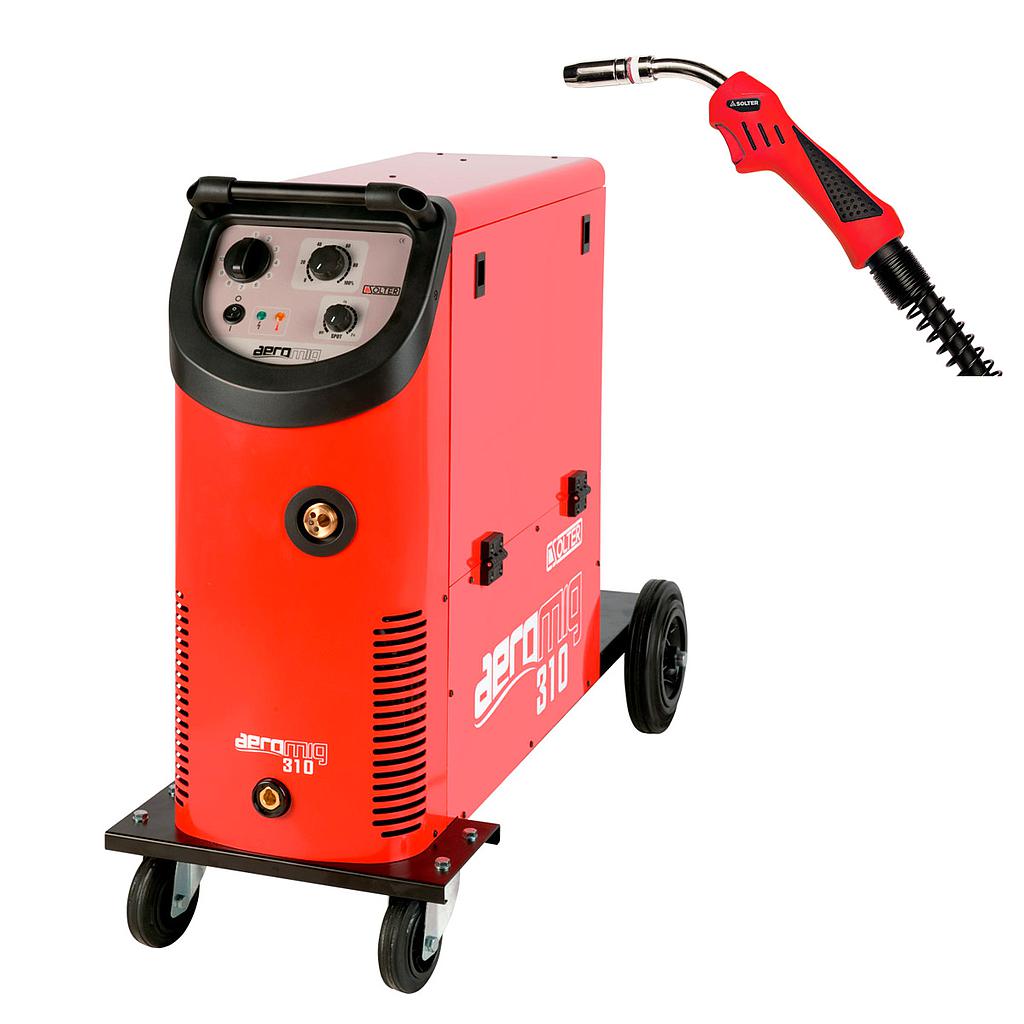

The AEROMIG 310 wire machine is bi-voltage three-phase (230V/400V). With an extremely compact and innovative design, it is the best compromise between versatility, ease of use and robustness with powers of up to 300 amps and the possibility of welding with wires up to 1.2mm in materials as diverse as Steel, Stainless and Aluminum.
Microprocessor control. Automatic Burn-back Soft-start. 10 regulation points with fine adjustment of the welding current. Adjustable timer 0-2s.
|
General
|
|
|---|---|
| Intensity at 60%(100%) a 40ºC | 250A (200A) |
| Intensity MAX. | 300A |
| Regulation | 20 - 300A (15 - 29V) |
| Duty Cycle at 40ºC | 40% |
|
Tech
|
|
| Usable wire coil | D300 - 15kg |
| Usable welding wire | 0,6 - 1,2 mm |
| Motor max power | 65W |
| Wire feeder rolls | 4R |
| Wire speed | 0.....20m/min |
|
Electric
|
|
| Supply Voltage | 230/400V - 3ph |
| Absorved power max. | 14kva |
| OCV | 22 - 48V |
|
Structural
|
|
| Dimensions | 990x380x790mm |
| Protection index | IP23 |
| Regulation board | SOLMIG |
| Weight | 77kg |
| Ventilation | FORCED |
