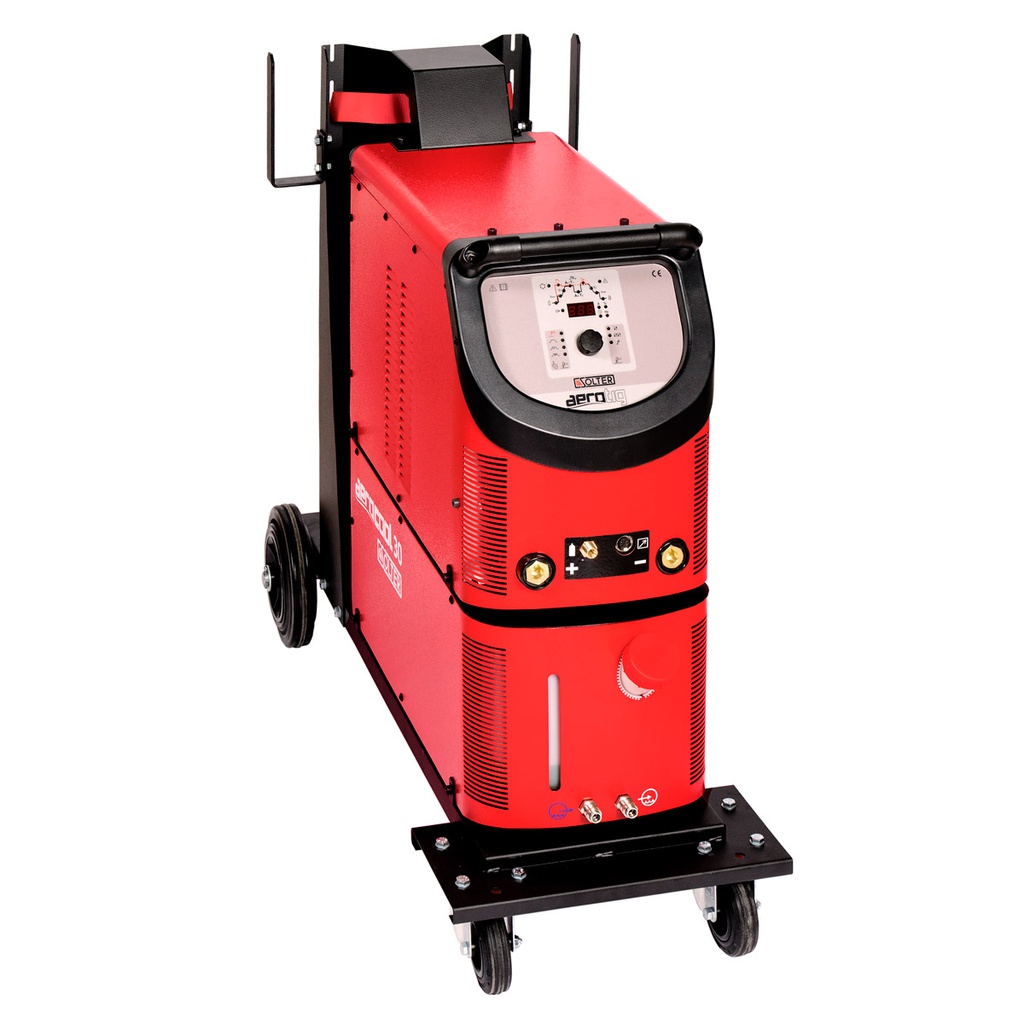

The AeroTig DC power supply is designed to operate in extreme conditions and applications in both MMA and TIG. Thanks to its 320A or 400A it is ideal for continuous work.
Main features:
· “Low Voltage Inverter” technology, being 30% more efficient than conventional inverter power supplies.
· "Digital ArcSense" technology, with real-time reading of the arc 75,000 times per second.
· Fully digital control of the welding curve.
· Double tunnel-type automatic ventilation, acting only when the equipment requires it.
| General | |
|---|---|
| Duty Cycle at 40ºC | 45% |
| Regulation | 10 - 320/400A (10,4 - 20,8V) |
| Intensity MAX. | 320A // 400A |
| Intensity at 60%(100%) a 40ºC | 320A (280A) // 400A (320A) |
| Regulations | EN60974-1, EN60974-10 |
| Tech | |
| Usable electrodes TIG | 1.6mm-4.0mm |
| Usable electrodes MMA | 1,6 - 5.0mm |
| Frecuencia de pulsado TIG | 500Hz |
| Electric | |
| Voltage range | 360-440V |
| Absorved power max. | 15,3Kva |
| Fuse | 16A |
| Supply Voltage | 3ph-400V |
| Structural | |
| Ventilation | DOUBLE auto TUNNEL |
| Weight | 26/70 kg |
| Regulation board | AEROTIG |
| Protection index | IP23 |
| Dimensions | 280x360x465/1020mm |
| Configuraciones | |
| Version AEROTIG PRO DC | 320A DC or 400A DC |
| NO Refrigerador Aerotig | Aerocool 30 or Sin Refrigerador |
| NO Carro transporte | 10252 - Carro UTS 200 + Soporte carro Aerotig or Sin carro |
| NO Antorchas TIG | SR-26 D35/50 8M or SR-18W D35/50 4M or SR-18W D35/50 8M or Sin antorcha TIG |
| NO Pedal | Pedal Aerotig or Sin pedal |
| Manómetro | Regulador R25 AR/CO2 or Sin manómetro |
| NO Conjunto Masa | 06114 - 3m Cu35mm 35-50 400A or Sin pinza |
| NO Accesorios MMA | 06704 - 4m CU25mm 35-50 200A or Sin Conj. MMA |
| Líquido refrigerante adicional | 10214 - Líquido refrigerante 5L or Sin líquido refrigerante adicional |
| NO Enchufes | Clavija Prot. 16A 3P+T or Clavija Prot. 16A 3P+N+T 400V or Clavija Prot. 32A 3P+T 380/400V or Clavija Prot. 32A 3P+N+T 380V or Sin enchufe |
