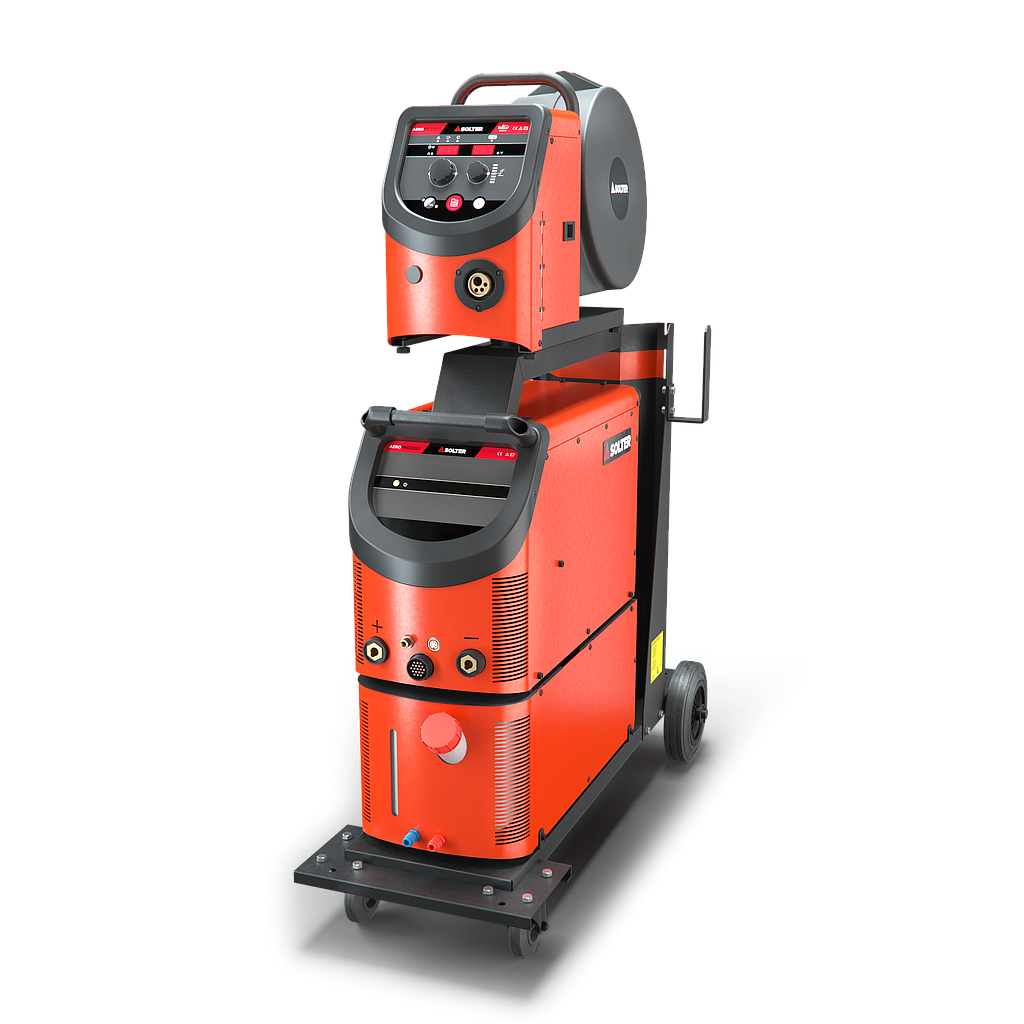

AEROPROCESS DVW 500
· Máquina de soldar profesional MIG Sinérgico Multiproceso.
· 500 amperios al 30%.
· Modulo Welding Itelligence (Wi) integrado.
· Increíbles resultados en todos los materiales (Acero, Aluminio, Inoxidable, etc.).
· El KIT incluye pinza de masa, antorcha refrigerada PULSE, carro, devanador con conexión de 5m y refrigerador.
Comparte este producto:
Main features:
· Multifunction wire machine capable of welding using MIG-MAG, TIG Lift-Arc and MMA processes. . Built-in Wi module, with Wifi, Connect and Waas technologies · Synergistic control of the welding process with preselection of the work to be done. · Arc height control to achieve spatter-free welding · Adjustable Crater-Filling, for a perfect weld bead finish. · Ideal for welding with GAP (separation between pieces) · Possibility of adjustment by wire speed (m/min.) and by current (Amp) · Real-time reading of voltage (Volt) and Intensity (Amp) during welding. When finished, the device displays the average of both parameters. · Control of the consumption of the thread used, allowing the cost of each process to be calculated. · Possibility of storing up to 10 programs · Excellent results with pre-loaded programs in welding: Carbon Steel (SG3), Stainless Steel (Ss-309, Ss-316), Aluminum (AL-5356, AL-4043), Copper-Silicon (CuSi3) and Tubulars (Fc-Rutile, Fc-Basic, Fc-316)
| General | |
|---|---|
| Duty Cycle at 40ºC | 30% |
| Regulation | 10-500A |
| Intensity MAX. | 500A |
| Intensity at 60%(100%) a 40ºC | 385A (350A) |
| Regulations | EN-90971-1, EN90974-10 |
| Tech | |
| Usable electrodes TIG | 1,6 - 4.0mm |
| Usable electrodes MMA | 1,6 - 5,0mm |
| Usable wire coil | D300 - 15kg |
| Wire feeder rolls | 4R |
| Motor max power | 95W |
| Usable welding wire | 0,6 - 1,6 mm |
| Electric | |
| I₁max | 33A |
| OCV | 62V |
| Voltage range | (360 - 440V) |
| Absorved power max. | 22Kva |
| Ieff | 18A |
| Fuse | 20A |
| Supply Voltage | 400V - 3ph |
| Structural | |
| Ventilation | DOUBLE AOUTOMATIC TUNNEL |
| Weight | 85kg |
| Regulation board | AEROPROCESS SYNERGIC Wi |
| Protection index | IP23S |
| Dimensions | 655x275x1290 mm |
