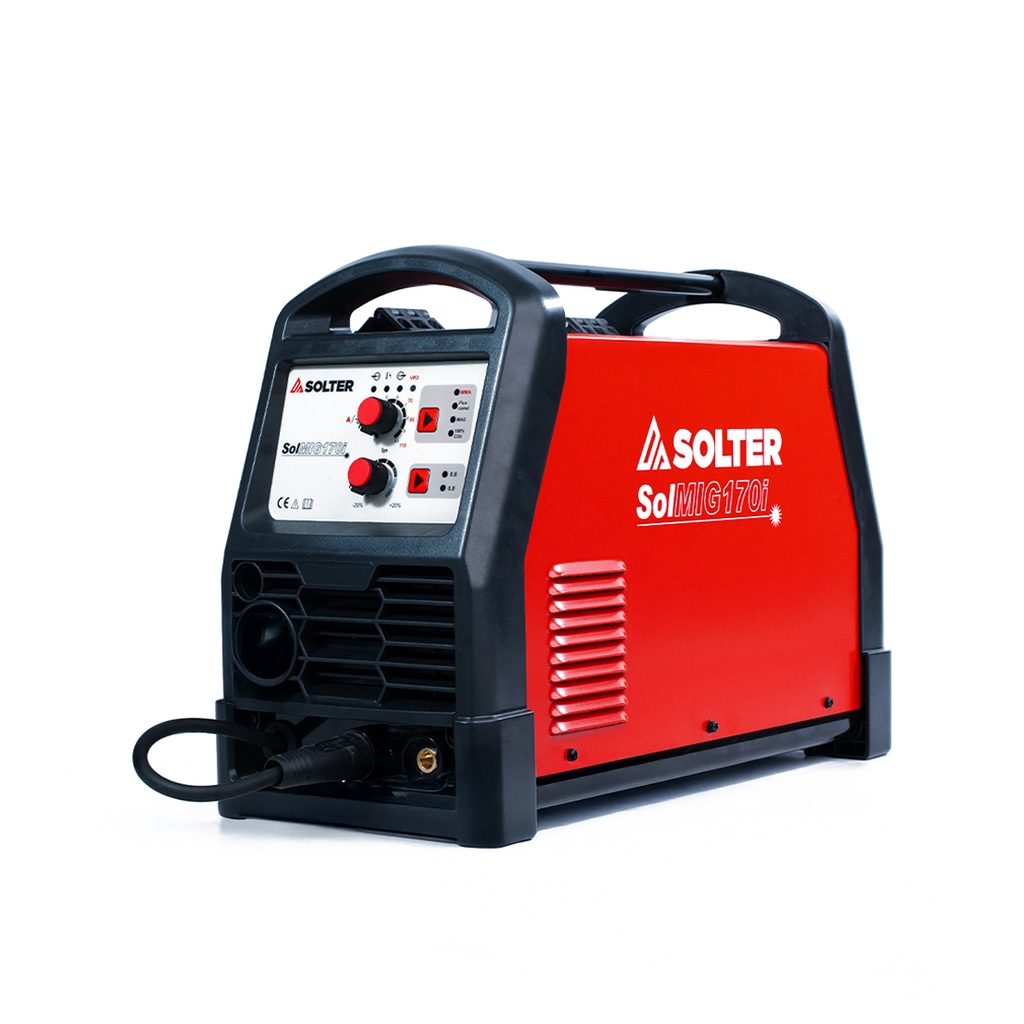

SOLMIG 170i
📌La SOLMIG 170i de Solter es una soldadora multiproceso MIG/MAG y MMA, ideal para trabajos en aceros y aleaciones ligeras en talleres y mantenimiento, tanto en interiores como exteriores. Su tecnología inverter avanzada proporciona una soldadura estable y precisa, con ajustes intuitivos desde su panel digital con perillas de fácil acceso e indicadores LED. Cuenta con un rango de regulación de 20-150A y un ciclo de trabajo del 35% a 115A en MMA y 130A en MIG (MAG). Es compatible con hilo sólido y tubular (0.6-0.8 mm), con o sin gas, y con electrodos de hasta 3.25 mm. Su diseño compacto y ligero (10,15 kg) permite fácil transporte. Fabricada bajo normativas EN 60974-1 y EN 60974-10 Clase A, con protección IP21S y ventilación forzada. ¡Fiabilidad y precisión con Solter!
Comparte este producto:
Key Features:
✅ Advanced Inverter technology: Provides stable, precise, and efficient welding, reducing energy consumption and ensuring optimal results on various materials such as steel and light alloys. Its design ensures smooth ignition and a stable arc, even in demanding tasks.
✅ MIG/MMA Multiprocess: Compatible with solid and flux-cored wires (0.6-0.8 mm), allows welding with or without gas thanks to its polarity reversal feature. Ideal for workshop applications and maintenance tasks both indoors and outdoors.
✅ Professional performance: With a duty cycle of 35% at 115A in MMA and 130A in MIG, it delivers reliable and consistent performance, even during demanding work sessions. Ideal for various material thicknesses, always ensuring a professional-quality finish.
✅ Simple and intuitive controls: Includes easy-access knobs and LED indicators for quick, precise, and easy adjustment of power (20-150A), wire speed, and process selection.
✅ Compact and portable design: Weighing just 10.15 kg with reduced dimensions (490x210x330 mm), it's ideal for easy transport and comfortable use.
✅ Standard single-phase electrical connection: Operates seamlessly with conventional 230V power supply, consuming only up to 4 kVA, eliminating the need for special installations.
✅ Certified safety and durability: Manufactured according to standards EN 60974-1 and EN 60974-10 Class A, it includes IP21S protection and a forced ventilation system to prevent overheating and ensure a long service life.
💡 Trust Solter and elevate the quality standard in every weld.
| General | |
|---|---|
| Duty Cycle at 40ºC | 35% |
| Regulation | 20-150A |
| Intensity MAX. | 130A |
| Intensity at 60%(100%) a 40ºC | 90A (77A) |
| Regulations | EN 60974-1 / EN 60974-10 Clase A |
| Tech | |
| Usable electrodes MMA | 1,6mm - 3,25mm |
| Usable wire coil | D100 - 1kg, D200 - 5kg |
| Wire feeder rolls | 2R |
| Usable welding wire | 0,6 - 0,8 mm |
| Electric | |
| OCV | 58V |
| Absorved power max. | 4Kva |
| Fuse | 16A |
| Supply Voltage | 230V-1ph |
| Structural | |
| Ventilation | FORCED |
| Weight | 10,15 kg |
| Regulation board | SOLMIG DIGITAL |
| Protection index | IP 21S |
| Dimensions | 490x210x330mm |
