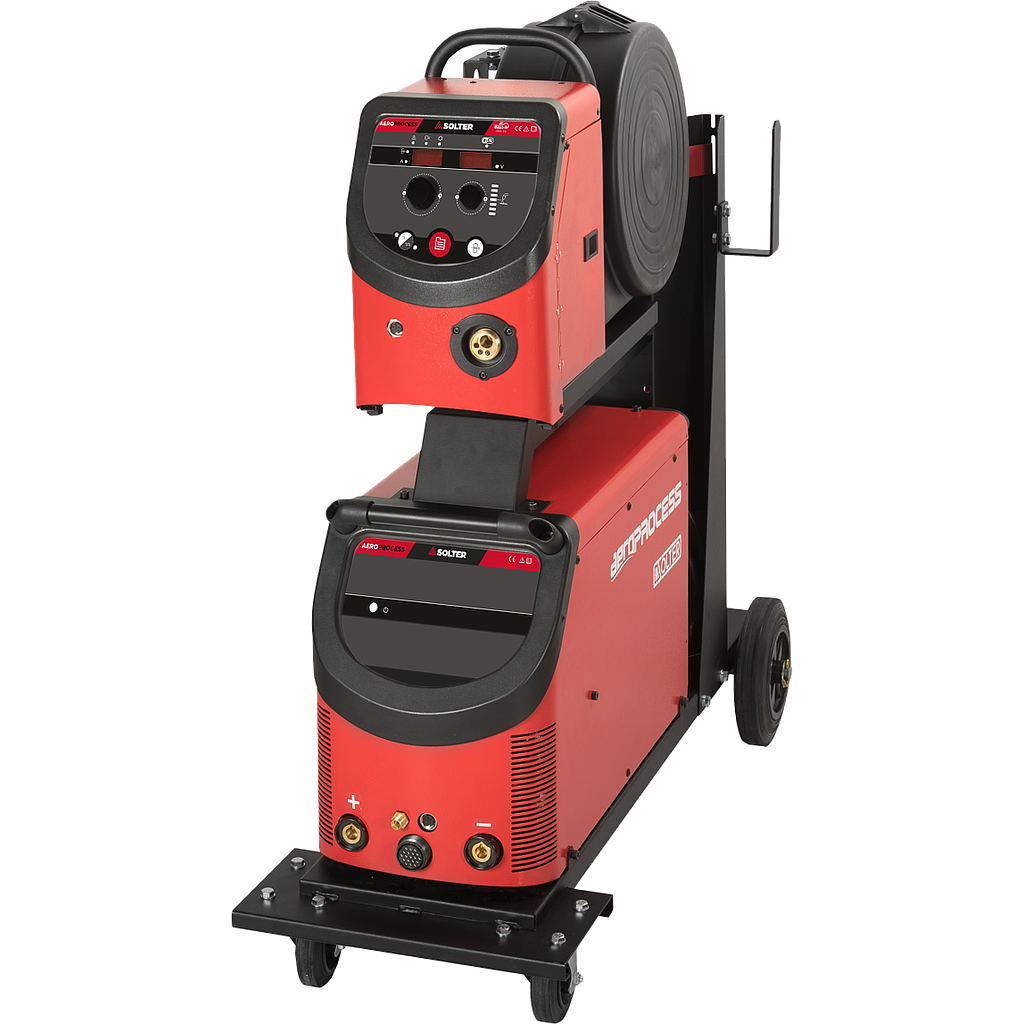

AEROPROCESS DV 320

• Duty Cycle at 40ºC

  • 45%

• Regulation

  • 20-320A(15 - 30V)

• Intensity MAX.

  • 320A

• Intensity at 60%(100%) a 40ºC

  • 280A (250A)

• Regulations

  • EN-90971-1, EN90974-10

• Usable electrodes TIG

  • 1,6mm - 3,2mm

• Usable electrodes MMA

  • 1.6mm - 4.0mm

• Wire speed

  • 0.....18m/min

• Usable wire coil

  • D300 - 15kg

• Wire feeder rolls

  • 4R

• Motor max power

  • 90W

• Usable welding wire

  • 0,6 - 1,2 mm

• OCV

  • 65V

• Absorved power max.

  • 15,3Kva

• Fuse

  • 16 A

• Supply Voltage

  • 400V - 3ph

• Ventilation

  • TUNNEL AUTOMATIC

• Weight

  • 65Kg

• Regulation board

  • AEROPROCESS SYNERGIC Wi

• Protection index

  • IP23S

• Dimensions

  • 655x275x1005mm
