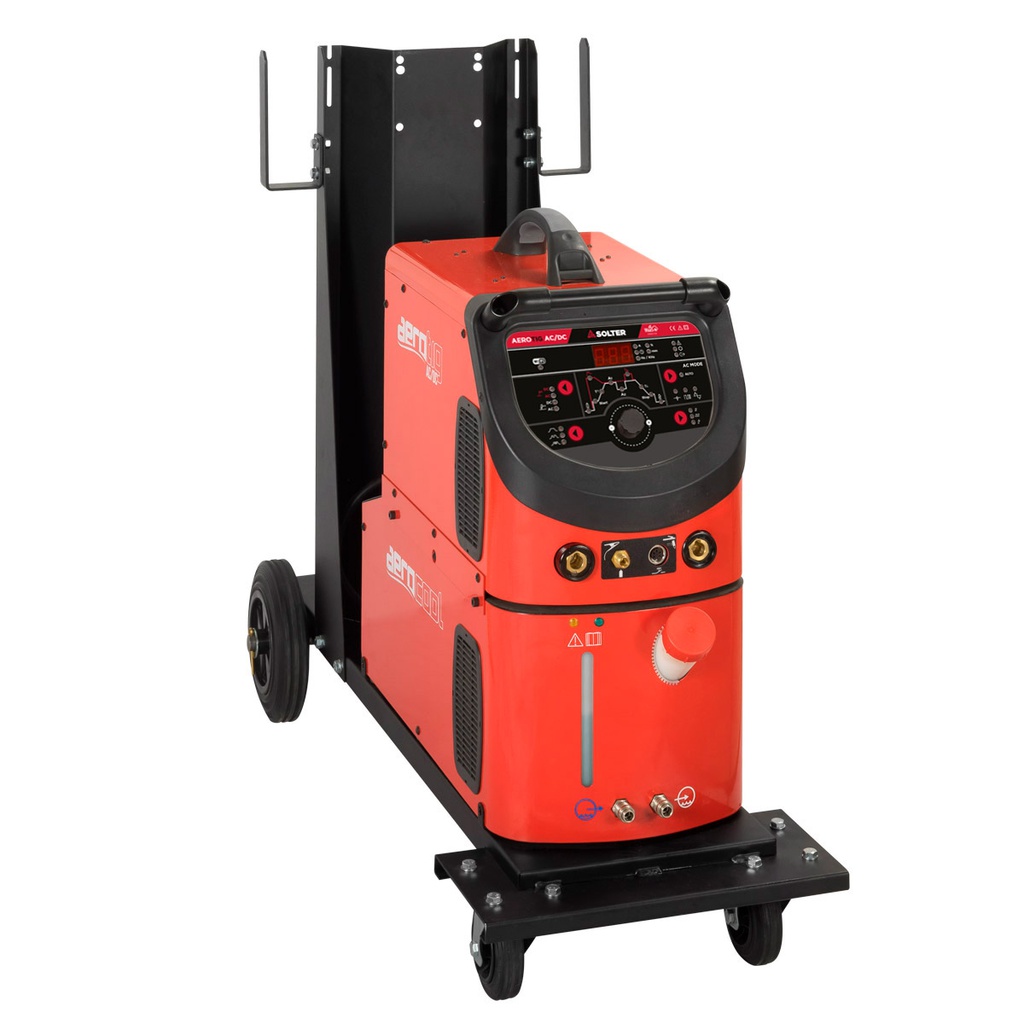

AEROTIG AC/DC Wi - 200A 1Ph
The AEROTIG AC/DC series is the professional TIG solution par excellence. Thanks to its powerful AC/DC INVERTER, incredible results are achieved both in carbon and stainless steels and, especially in a multitude of ALUMINUM alloys.
· Soldadura\xa0TIG AC/DC PULSADA\xa0de todo tipo de aceros al carbono, inoxidables y\xa0ALUMINIO.
\n· Wi regulation panel, with remote regulation of the welding curve and data management through the WaaS platform.
\n· Equipo monofásico de 200A al 50%.
Comparte este producto:
Main features:
· Arc stability and control, regardless of the electrode-material distance thanks to regulation by Arc-Sense.
· Auto Mode synergistic control of the AC parameters (balance-frequency-offset) facilitating their optimal and easy regulation.
· Double automatic ventilation, acting only when the equipment requires it.
· Stand-by position, when the equipment is not in operation.
· Equipped with Anti-stick, Arc-Force, Hot-Start for MMA welding and Lift-Arc/HF functions for TIG welding.
| General | |
|---|---|
| Intensity at 60%(100%) a 40ºC | 170A (120A) |
| Intensity MAX. | 200A |
| Regulations | EN60974-1, EN60974-10 |
| Regulation | 10 - 200A (10,4 - 18,0V) |
| Duty Cycle at 40ºC | 50% |
| Tech | |
| Usable electrodes MMA | 1,6 - 4,0mm |
| Usable electrodes TIG | 1,6 - 4.0mm |
| Frecuencia de pulsado TIG | 500Hz |
| Electric | |
| Supply Voltage | 1ph- 230V |
| Fuse | 25A |
| Absorved power max. | 9,5KVA |
| OCV | 65V |
| Structural | |
| Dimensions | 465x280x360mm |
| Protection index | IP23 |
| Regulation board | AEROTIG AC/DC Wi |
| Weight | 14 kg |
| Ventilation | Double AUTO |
| Technologies | |
| Tecnologies | Wifi, WaaS, Wi Panel, Geolocation |
| Configuraciones | |
| NO Refrigerador Aerotig | Aerocool 20 or Sin Refrigerador |
| NO Carro transporte | 56173 - Carro UTS 200 or Sin carro |
| NO Antorchas TIG | SR-26 D35/50 8M or SR-18W D35/50 4M or SR-18W D35/50 8M or Sin antorcha TIG |
| NO Pedal | Pedal Aerotig or Sin pedal |
| Manómetro | Regulador R25 AR/CO2 or Sin manómetro |
| NO Conjunto Masa | 06165 3m Cu25mm 35-50 200A or 06114 - 3m Cu35mm 35-50 400A or Sin pinza |
| NO Accesorios MMA | 06704 - 4m CU25mm 35-50 200A or Sin Conj. MMA |
| Líquido refrigerante adicional | 10214 - Líquido refrigerante 5L or Sin líquido refrigerante adicional |
| NO Version AEROTIG | 10201 - AET 200A |
