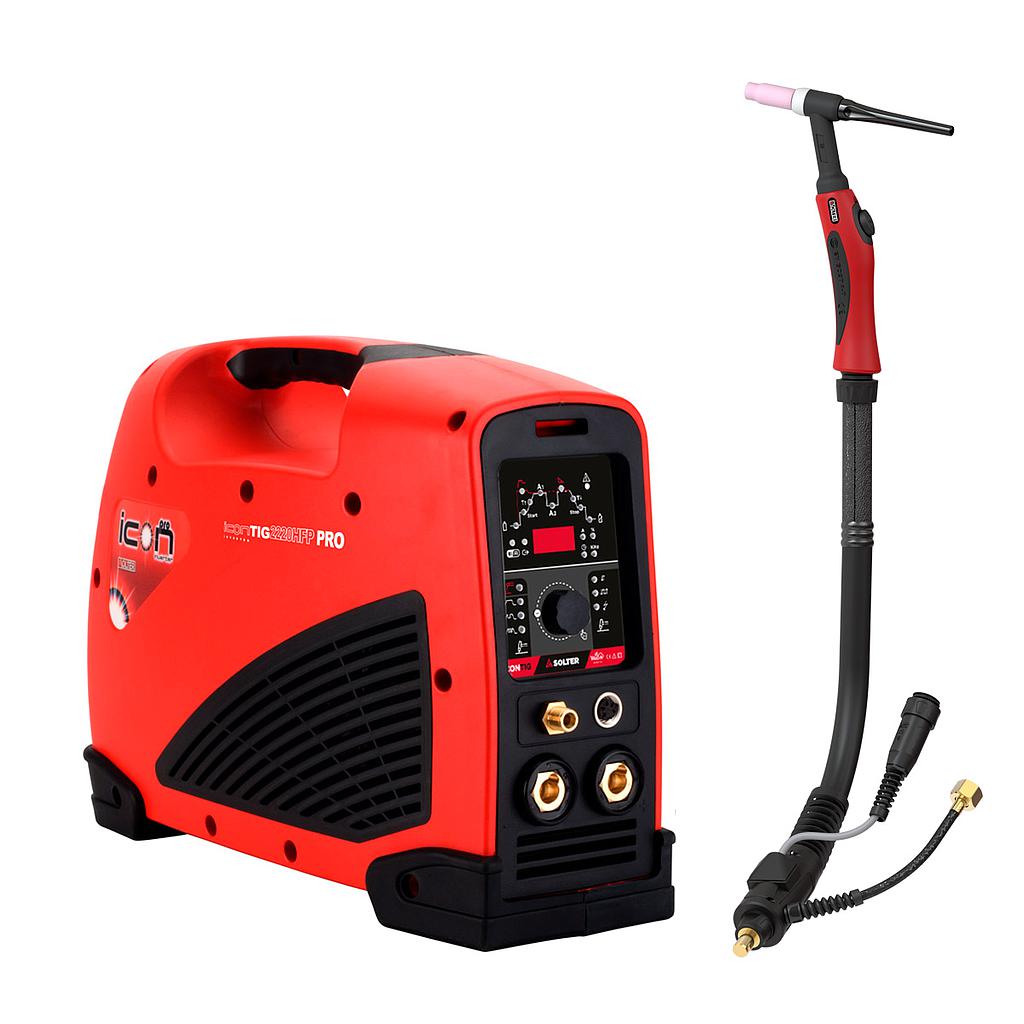

ICONTIG 2220 HF PULSE PRO WI + TORCH SR-26 4M + CASE
· Equipo TIG DC PULSADA con alta frecuencia (HF).
· Potencia de\xa0220A al 60%.
· Se suministra con\xa0conjunto\xa0pinza de masa y antorcha TIG SR-17 de 4m.
· Con las tecnologías Wifi, Connect y WaaS
Comparte este producto:
iCONTIG equipment is the best compromise between precision and power. Due to its patented and innovative DDR construction design, due to its great capacity to work under intensive conditions and demanding environments and due to its unmatched results in terms of reliability, performance and power, this is undoubtedly the best option for the most demanding professionals.
Main features:
· Stability and arc control, regardless of the electrode-material distance thanks to regulation by ARCSENSE.
· Double automatic ventilation, acting only when the equipment requires it.
· STAND-BY position, when the equipment is not in operation.
· Equipped with Anti-stick, Arc-Force, Hot-Start and Lift-Arc / HF (TIG) devices.
· Connectable to generators with a wide range of working voltage.
| General | |
|---|---|
| Duty Cycle at 40ºC | 50% |
| Regulation | 10-220A |
| Intensity MAX. | 220A |
| Intensity at 60%(100%) a 40ºC | 180A (140A) |
| Regulations | EN 60974-1, EN 60974-10 |
| Tech | |
| Usable electrodes TIG | 1,6mm - 4,0mm |
| Usable electrodes MMA | 1,6mm - 4,0mm |
| Frecuencia de pulsado TIG | 2000Hz |
| Electric | |
| OCV | 68V |
| Voltage range | 120V - 310V |
| Absorved power max. | 8,5KVA |
| Fuse | 25A |
| Supply Voltage | 230V-1ph |
| Structural | |
| Ventilation | Doble / Double AUTO |
| Weight | 7,2 Kg |
| Regulation board | iCONTIG “pulse” |
| Protection index | IP23C |
| Dimensions | 430x175x325 mm |
