Ref.
K0240

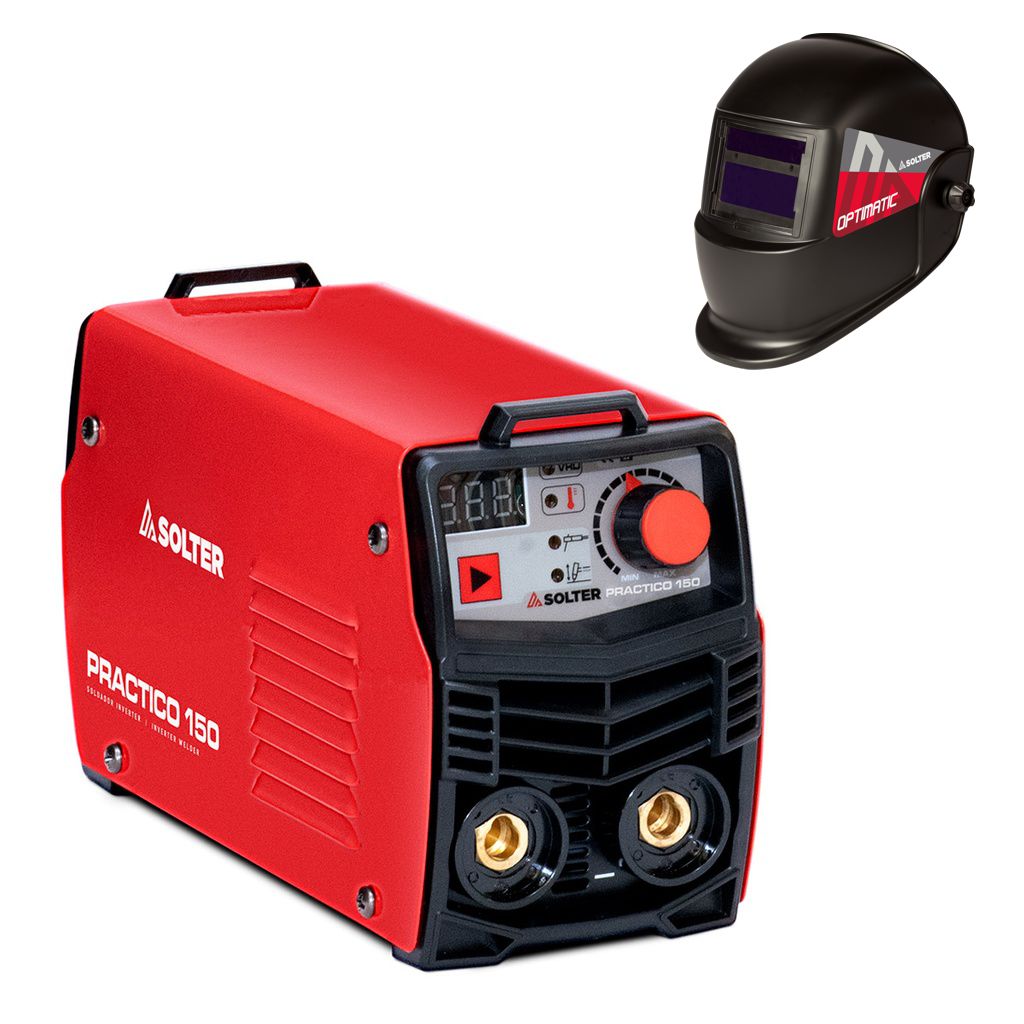

KIT PRACTICO 150 + OPTIMATIC 45
· Inverter de 150Amp al 40%.
· Soldador completo con accesorios de soldadura: maletín de aluminio, cepillo-piqueta y pantalla de mano.
· Válido para generador.
· TIG por raspado.
· Regulación DIGITAL.
Comparte este producto:
Main features:
The PRACTICO models are equipment within the Inverter Mini segment for welding with covered electrodes and TIG, achieving an unbeatable weight-performance ratio. All this, at an extremely competitive price.
· Unmatched power-to-weight ratio.
· Ease to use thanks to Inverter technology supplying direct current DC.
· Minimum consumption due to its high energy efficiency.
· Connectable to generators with a wide range of voltages of use.
· Equipped with Arc-Force and Hot-Start devices
.Possibility of TIGwelding.
| General | |
|---|---|
| Duty Cycle at 40ºC | 40% |
| Regulation | 10 - 150A |
| Intensity MAX. | 150A |
| Intensity at 60%(100%) a 40ºC | 90A |
| Regulations | EN60974-1 |
| Tech | |
| Usable electrodes TIG | 1,6mm - 3,2mm |
| Usable electrodes MMA | 1,6 - 3,2 mm |
| Electric | |
| OCV | 62V |
| Voltage range | 220V - 240V |
| Absorved power max. | 7kva |
| Fuse | 16 A |
| Supply Voltage | 230V - 1Ph |
| Structural | |
| Ventilation | FORCED |
| Weight | 2Kg |
| Regulation board | SOLTER DIGITAL |
| Protection index | IP21 |
| Dimensions | 210x100x137mm |
| Technologies | |
| Tecnologies | Hot-Start, Generator OK, Anti STICK, Arc Force |
