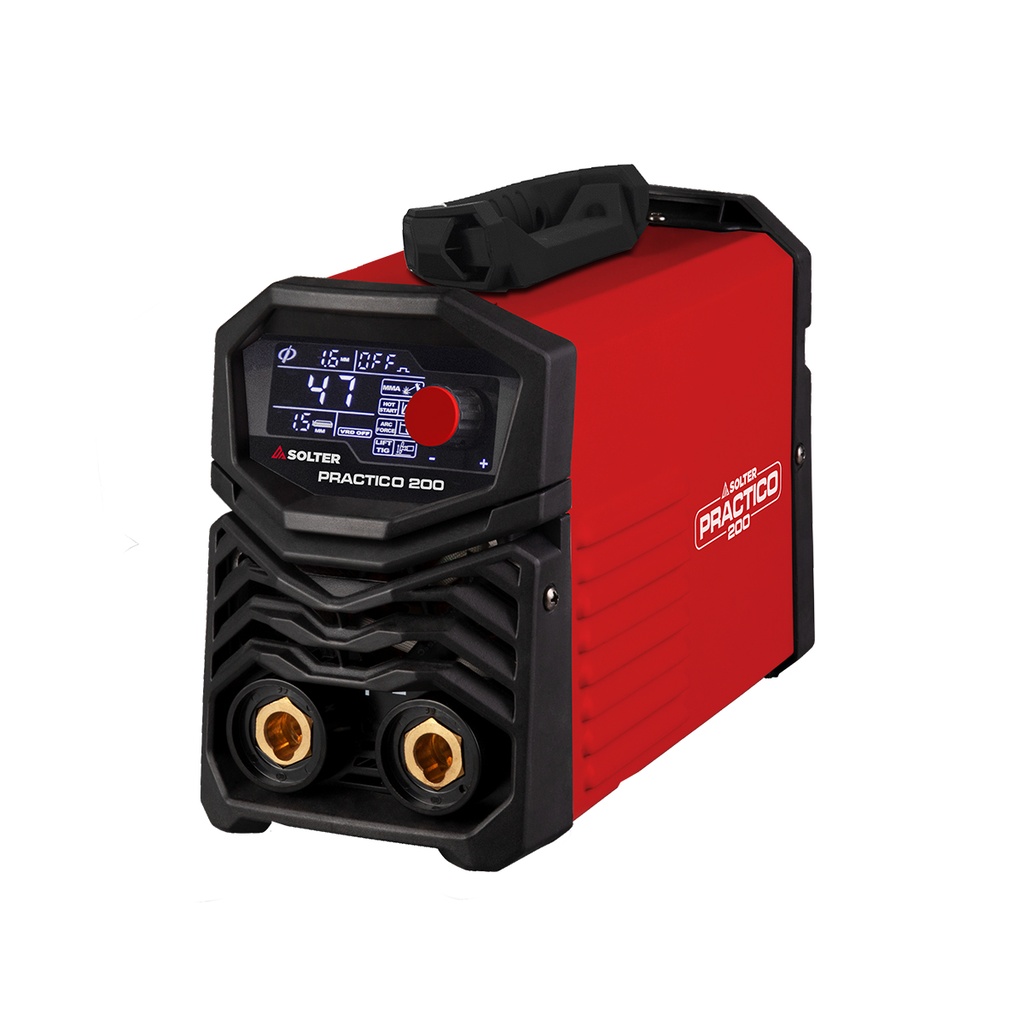

PRACTICO 200 LD (200@20%)
● The PRACTICO 200 LD from Solter is a compact inverter welder, ideal for maintenance, construction, and light metal repair work. It offers output current up to 200A, allowing welding with electrodes up to Ø4 mm and TIG welding by contact (Lift-Arc). Equipped with features such as Hot Start, Arc Force, VRD ON/OFF, and pulsed welding, it provides excellent control on thin materials. Weighing just 4.64 kg, it's easy to transport and set up. Its digital panel enhances precision without complicating operation. Boost your installation's reliability with Solter. Get yours today!
Main Features:
✓ Versatile current range: adjustable from 10 to 200 A, allows working with rutile and basic electrodes and performing TIG Lift-Arc processes with excellent stability.
✓ Built-in smart functions: includes Hot Start, Arc Force, and VRD ON/OFF to optimize ignition, maintain a stable arc, and enhance safety in humid or enclosed environments.
✓ Pulsed MMA mode: ideal for thin materials, allows precise control of penetration and prevents distortion, enabling cleaner welds.
✓ Efficient duty cycle: delivers performance of 30% at 200A, 60% at 141A, and 100% at 110A, adapting to intensive work rates without compromising durability.
✓ Digital control panel: simple and intuitive setup with a backlit display, allowing adjustment of parameters such as pulse frequency, material thickness, and mode selection.
✓ Complete kit included: comes with a carrying case, ground clamp, electrode holder, hand shield, and cables—ready to use right out of the box.
✓ Compact and lightweight design: weighing only 4.64 kg, it's perfect for mobile work, on-site installations, or confined spaces where portability is key.
Solter offers you reliable, durable, and easy-to-use solutions. Designed to deliver high performance where it's needed most—without complications.
| General | |
|---|---|
| Duty Cycle at 40ºC | 20% |
| Intensity MAX. | 200A |
| Regulation | 10 - 200A |
| Intensity at 60%(100%) a 40ºC | 141 A (60 %) / 110 A (100 %) |
| Regulations | EN 60974-1, EN 60974-10 |
| Tech | |
| Usable electrodes TIG | 1.0 – 3.2 mm |
| Usable electrodes MMA | 2.5 – 4.0 mm |
| Electric | |
| I₁max | 32 A |
| Voltage range | 220V – 240V |
| Ieff | 18A |
| Supply Voltage | 230V - 1Ph |
| Structural | |
| Ventilation | FORCE |
| Weight | 4.64 kg |
| Regulation board | Digital LED (unidad de control) |
| Protection index | IP21S |
| Dimensions | 330×130×200mm |
| Technologies | |
| Tecnologies | Pulse MMA, VRD ON/OFF, LIFT TIG, Arc Force, Hot-Start |
