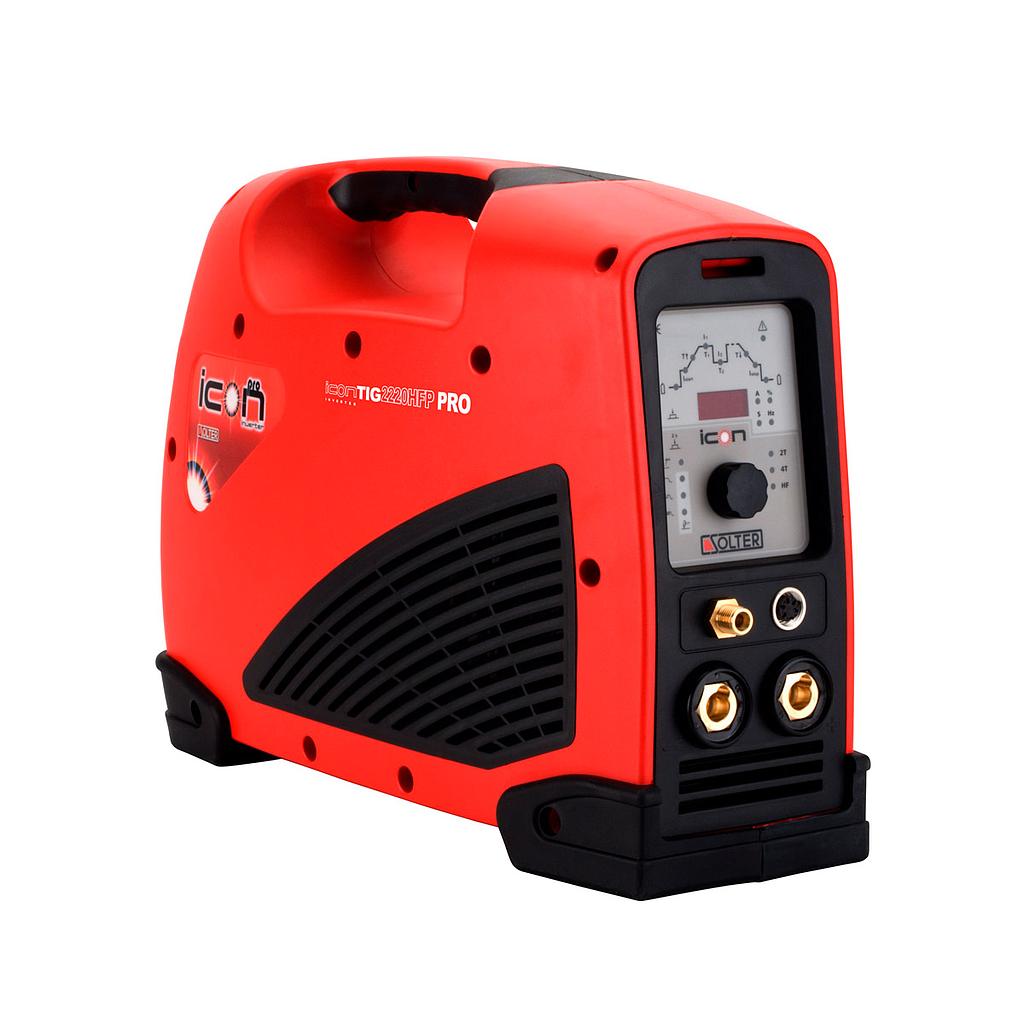

ICONTIG 2220 HF PULSE PRO
CONTIG 2220 HF PULSE PRO is the perfect companion for welding professionals seeking precision, power, and durability for their most demanding projects. This high-frequency (HF) pulsed TIG DC equipment combines cutting-edge technology with a compact and ergonomic design, ensuring flawless results every time. Developed by Solter, a leader in welding innovation and quality, this machine guarantees superior performance and the support of an after-sales service committed to customer satisfaction.
Comparte este producto:
Main features:
· Precise Control and Total Stability: ARCSENSE technology ensures advanced arc control, delivering consistent results when welding stainless steel, alloys, and other metals, guaranteeing professional precision.
· Versatility in Work Modes: Easily switch between MMA, Pulsed TIG, TIG HF, and 2T/4T modes. Its customizable parameters provide complete control over the welding process.
· Robust and Portable Design: Featuring a DDR housing, it combines durability and lightness in a compact design of 7.2 kg and 430x175x325 mm, perfect for demanding jobs.
· Unmatched Power: With a regulation range of 10A to 220A and a TIG pulse frequency of up to 2000 Hz, it delivers exceptional performance even under challenging conditions.
· Smart Efficiency: The dual automatic ventilation system minimizes dust buildup and reduces maintenance. The automatic shutdown after 15 minutes of inactivity optimizes energy consumption and extends the equipment's lifespan.
· Guaranteed Compatibility: Works seamlessly with electric generators within a wide voltage range (120V - 310V), ensuring operability in any work environment.
· Advanced Safety Features: Equipped with Anti-stick, Arc-Force, Hot-Start, and Lift-Arc/HF, it maximizes welder safety and simplifies every task.
Quality Assurance and After-Sales Support: Solter provides dedicated after-sales service to address any needs. The brand guarantees quality, innovation, and personalized attention for its customers.
| General | |
|---|---|
| Duty Cycle at 40ºC | 50% |
| Regulation | 10-220A |
| Intensity MAX. | 220A |
| Intensity at 60%(100%) a 40ºC | 180A (140A) |
| Regulations | EN 60974-1, EN 60974-10 |
| Tech | |
| Usable electrodes TIG | 1,6 - 3,2mm |
| Usable electrodes MMA | 1,6mm - 4,0mm |
| Frecuencia de pulsado TIG | 2000Hz |
| Electric | |
| OCV | 68V |
| Voltage range | 120V - 310V |
| Absorved power max. | 8,5KVA |
| Fuse | 25A |
| Supply Voltage | 230V-1ph |
| Structural | |
| Ventilation | Doble / Double AUTO |
| Weight | 7,2 Kg |
| Regulation board | iCONTIG “pulse” |
| Protection index | IP23C |
| Dimensions | 430x175x325 mm |
