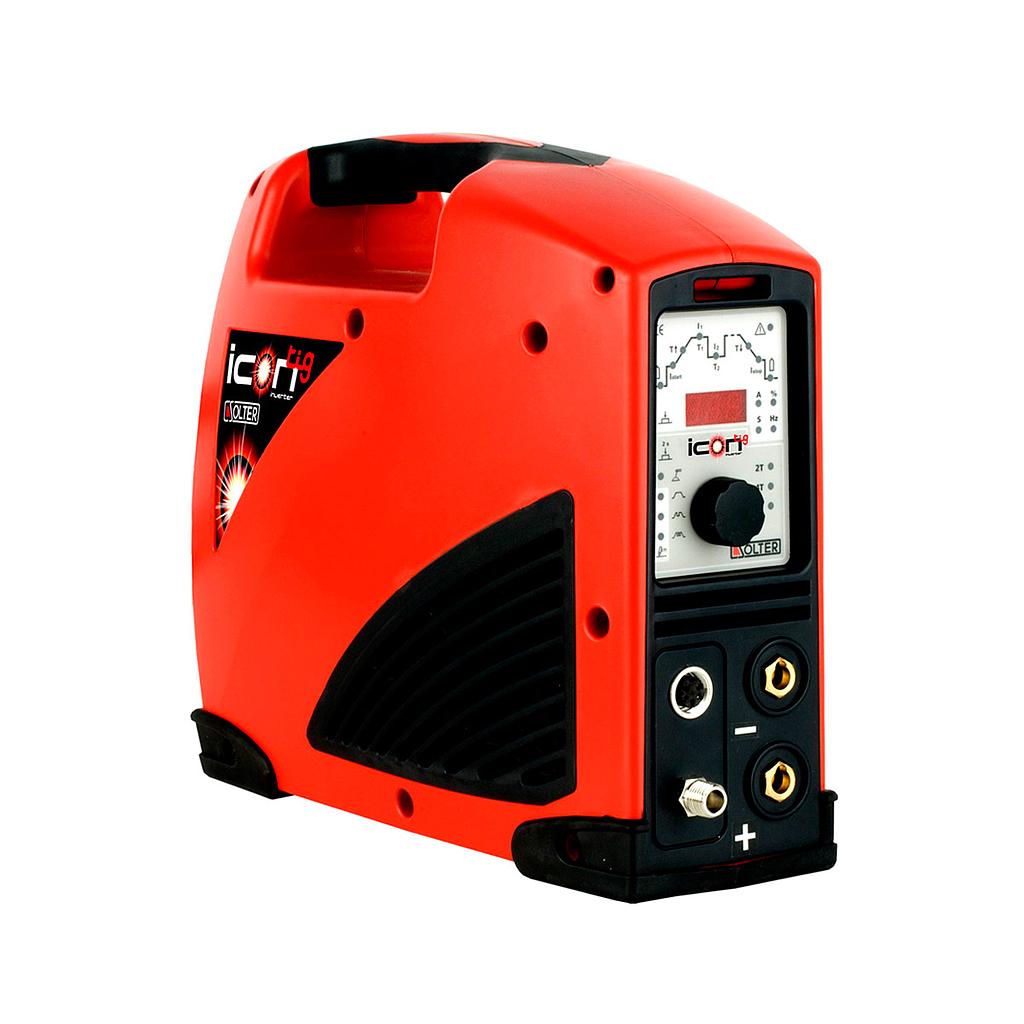

ICONTIG 1990 HF PULSE
📌\xa0La soldadora TIG ICONTIG 1990 HF PULSE de Solter\xa0es sinónimo de\xa0precisión y tecnología avanzada. Diseñada para ofrecer\xa0soldaduras impecables, incluso en los materiales más exigentes como el acero inoxidable y las aleaciones de níquel, esta máquina\xa0garantiza un control total del proceso\xa0gracias a su\xa0tecnología INVERTER y arco pulsado de alta frecuencia.
\n\nSu estructura\xa0compacta, robusta y reforzada\xa0está hecha para durar, mientras que su\xa0pantalla digital intuitiva\xa0permite\xa0ajustes precisos de potencia y pulso con facilidad. Ideal para profesionales que buscan\xa0resultados de alta calidad sin complicaciones, la ICONTIG 1990 HF PULSE es una inversión en\xa0rendimiento, durabilidad y eficiencia energética.\xa0¡Lleva tu trabajo al siguiente nivel con Solter!
Comparte este producto:
Main Features:
✅ High-precision HF ignition: Ensures a contactless arc start, preventing material contamination.
✅ High-Frequency Pulsed TIG Mode: Allows for exceptional control of the weld pool, reducing distortions and enhancing the weld’s aesthetics.
✅ Intuitive digital interface: Quick and precise adjustment of all parameters thanks to its single control selector.
✅ High-precision TACK mode: Quick tacking with full pulse control, achieving uniform and aesthetic welds on thin sheets and delicate materials.
✅ High energy efficiency (81%): Optimal performance with lower energy consumption.
✅ 60% duty cycle at 160A: Designed for long working hours without interruptions.
✅ Smart ventilation: Minimizes dust accumulation, extending the equipment’s lifespan.
✅ Compatible with electric generators: Ideal for outdoor work or locations without stable power access.
✅ Total protection system: Includes thermal sensors and voltage monitoring to prevent overloads.
💡 The ICONTIG 1990 HF PULSE is designed for the most demanding professionals, ensuring precision, durability, and unmatched performance.
| General | |
|---|---|
| Duty Cycle at 40ºC | 45% |
| Regulation | 10 - 180A |
| Intensity MAX. | 180A |
| Intensity at 60%(100%) a 40ºC | 140A (110A) |
| Regulations | EN 60974-1, EN 60974-10 |
| Tech | |
| Usable electrodes TIG | 1,6mm - 2,4mm |
| Usable electrodes MMA | 1,6mm - 4,0mm |
| Frecuencia de pulsado TIG | 500Hz |
| Electric | |
| OCV | 80V |
| Voltage range | 10-180A (10,4 - 17,2V) |
| Absorved power max. | 6,5KVA |
| Fuse | 16A |
| Supply Voltage | 230V-1ph |
| Structural | |
| Ventilation | Doble / Double AUTO |
| Weight | 4,9 kg |
| Regulation board | iCONTIG “pulse” |
| Protection index | IP23C |
| Dimensions | 320x135x285 mm |
| Technologies | |
| Tecnologies | TIG HF, TIG lift, TIG pulse, TAC, Digital, Generator OK |
