Ref.
10096

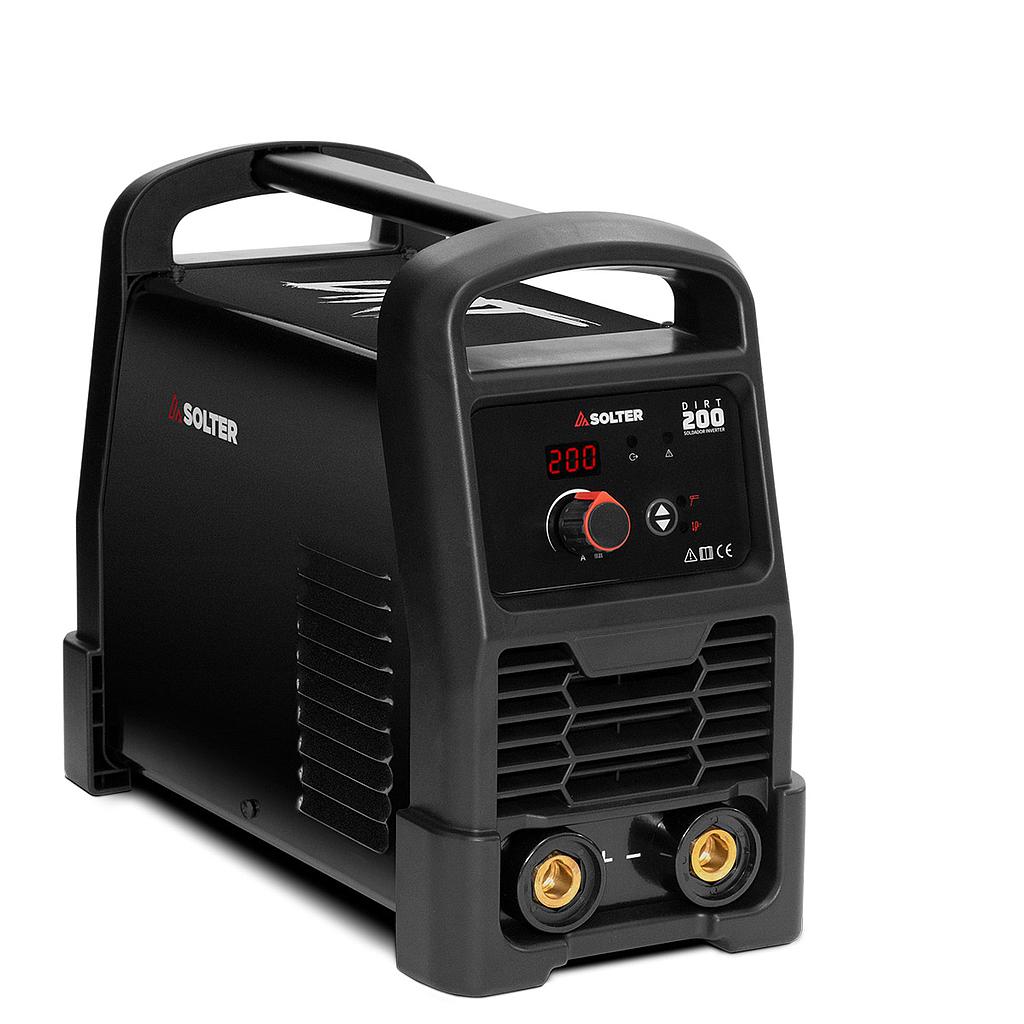

DIRT 200 CEL
· 200Amp inverter at 65%.
· Equipped with welding accessories.
· Valid for generator.
· TIG Lift-Arc.
· All types of electrodes, including aluminum.
Share this product:
Available Packs
![[K0213] DIRT 200 CEL + CASE](/web/image/product.product/47076/image_1920/350x350)
Ref:
K0213
DIRT 200 CEL + CASE
353.00 €
353.00 €
![[K0270] KIT DIRT 200 CEL + HELLMET R-05](/web/image/product.product/49629/image_1920/350x350)
Ref:
K0270
KIT DIRT 200 CEL + HELLMET R-05
383.00 €
383.00 €
Main features:
The DIRT models are Inverter equipment for welding covered electrodes and TIG, thanks to the Arc-Sense technology they can weld any type of electrode, including aluminum.
· Facilidad de uso gracias a la tecnología Inverter suministrando corriente continua DC
· Mínimo consumo por su alta eficiencia energética
· Conectable a generadores con un amplio rango de voltajes de utilización.
· Equipado con los dispositivos Arc-Force y Hot-Start
· Posibilidad soldadura TIG
· Regulación DIGITAL
|
General
|
|
|---|---|
| Intensity at 60%(100%) a 40ºC | 180A (150A) |
| Intensity MAX. | 200A |
| Regulations | EN 60974-1, EN 60974-10 |
| Regulation | 20 - 200A |
| Duty Cycle at 40ºC | 40% |
|
Tech
|
|
| Usable electrodes MMA | 1,6mm - 4,0mm |
| Usable electrodes TIG | 1,6mm - 3,2mm |
|
Electric
|
|
| Supply Voltage | 230V - 1Ph |
| Fuse | 16A |
| Absorved power max. | 9kva |
| Voltage range | 220 - 240V |
| OCV | 72V |
|
Structural
|
|
| Dimensions | 370x166x280 |
| Protection index | IP21S |
| Regulation board | SOLTER DIGITAL |
| Weight | 6kg |
| Ventilation | FORCED |
|
Technologies
|
|
| Tecnologies | Anti STICK , Arc Force , Hot-Start , CEL / ALU , Generator OK |
