Ref.
10207

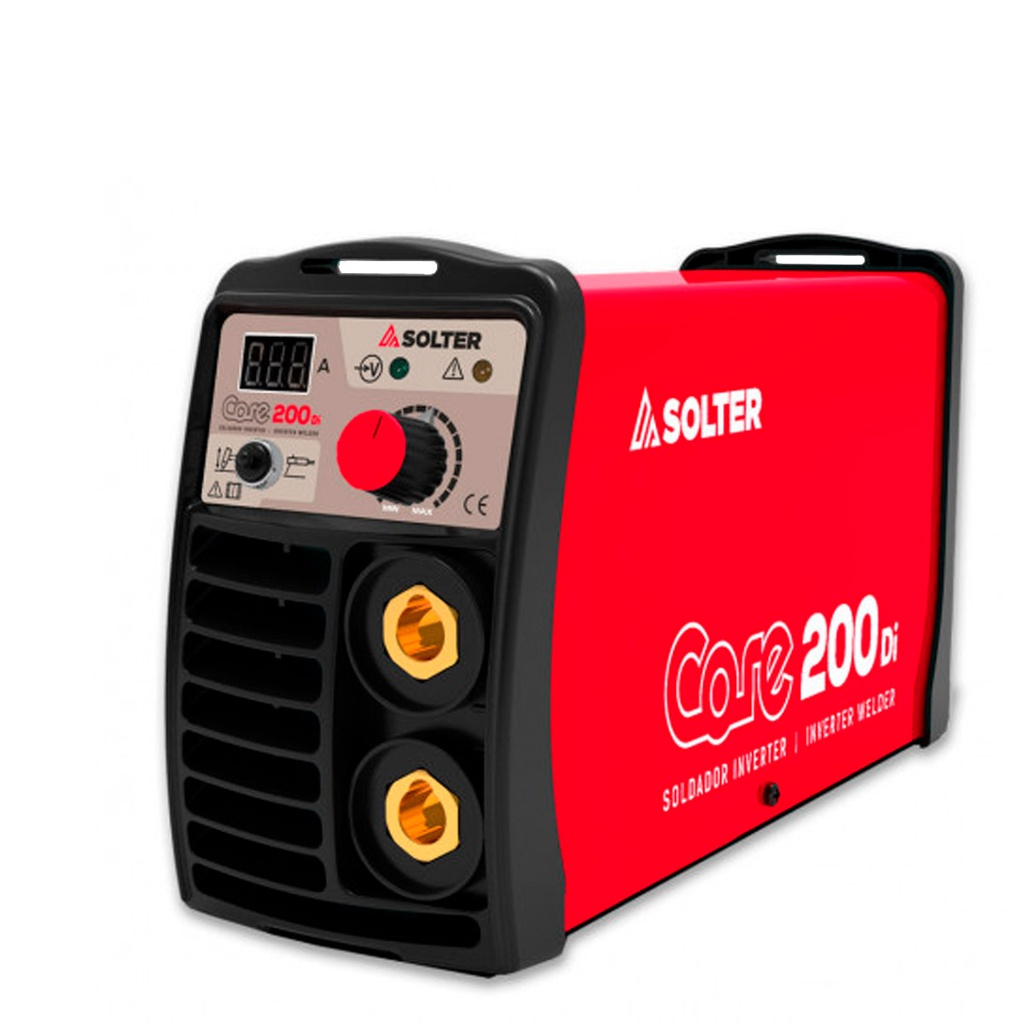

INVERTER CORE 200Di
·200Amp inverter at 60%.
· Equipped with carrying case and welding accessories.
· Valid for generator.
· TIG Lift-Arc.
Share this product:
Available Packs
![[K0243] CORE 200Di + CASE + OPTIMATIC 100](/web/image/product.product/48545/image_1920/350x350)
Ref:
K0243
CORE 200Di + CASE + OPTIMATIC 100
294.00 €
294.00 €
Main features:
The CORE models are Inverter equipment for welding with covered electrodes and TIG, which apply the new Nanocrystaline technology, achieving an unbeatable weight-performance ratio. All this, at an extremely competitive price.
· New Nanocrystaline technology: smaller, more powerful and lighter
· Ease of use thanks to Inverter technology supplying direct current DC.
· Minimum consumption due to its high energy efficiency.
· Connectable to generators with a wide range of voltages of use.
· Equipped with Arc-Force and Hot-Start devices.
· Possibility of TIG welding.
|
General
|
|
|---|---|
| Duty Cycle at 40ºC | 40% |
| Regulation | 20 - 200A |
| Intensity MAX. | 200A |
| Intensity at 60%(100%) a 40ºC | 160A (135A) |
| Regulations | EN 60974-1, EN 60974-10 |
|
Tech
|
|
| Usable electrodes TIG | 1,0 - 3,2mm |
| Usable electrodes MMA | 1,6mm - 4,0mm |
|
Electric
|
|
| OCV | 69V |
| Voltage range | 190 - 265V |
| Absorved power max. | 6,9Kva |
| Ieff | 25A |
| Fuse | 16A |
| Supply Voltage | 230V-1ph |
|
Structural
|
|
| Ventilation | FORZADA |
| Weight | 4,3 kg |
| Regulation board | SOLTER DIGITAL |
| Protection index | IP21 |
| Dimensions | 320x120x195mm |
|
Technologies
|
|
| Tecnologies | Anti STICK , Arc Force , Hot-Start , Generator OK |
