HELLMET FLOW
· Professional welding helmet.
· TRUE COLOR technology,
· 4 sensors,Maximum optical quality (1/1/1/1)
· Large field of view (100x100mm).
· Adjustable DIN 5-8 and 9-13, sensitivity and delay.
· Valid for MMA, MIG/MAG and TIG.
· Replaceable battery
With high flow FILTER unit (up to 220ml/min)
Share this product:
Main features:

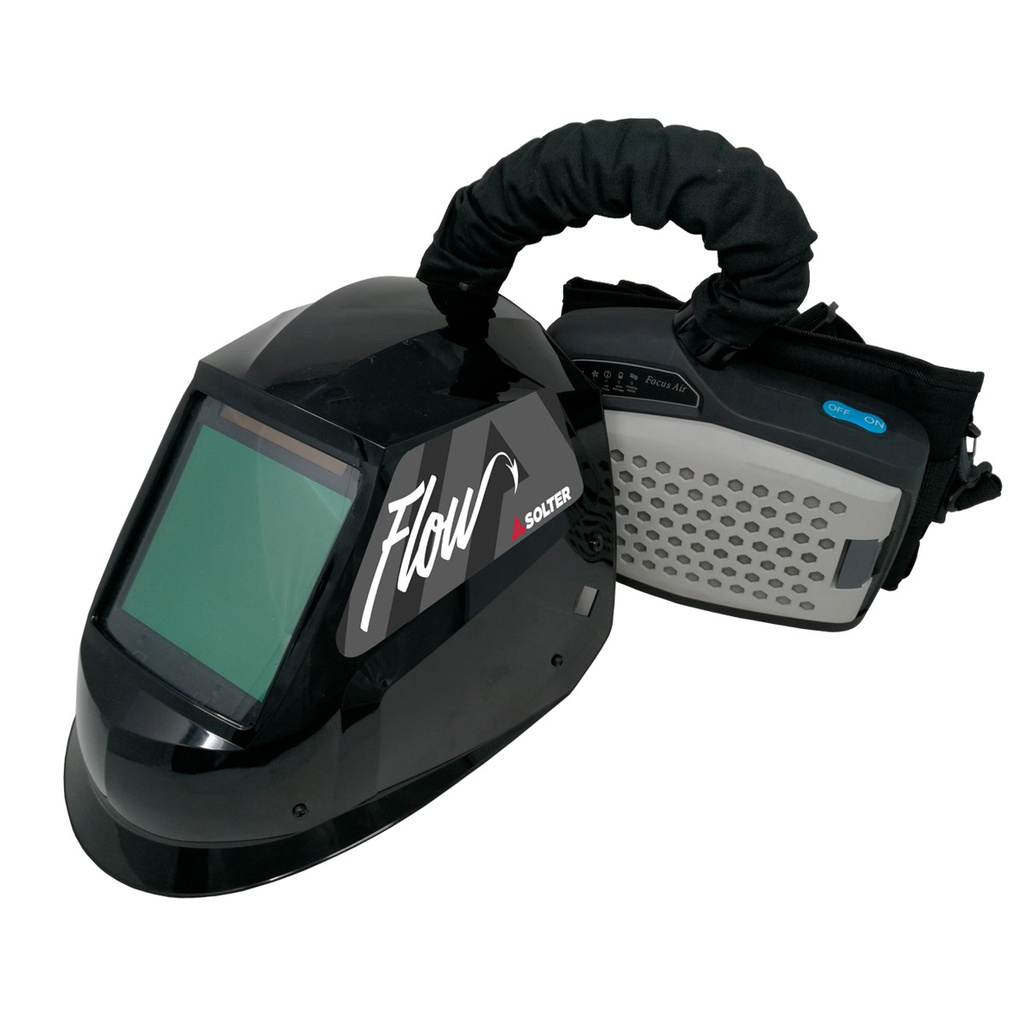

The HELLMET FLOW electronic welding shield is the ultimate exponent of eye protection for the most demanding welder. Everything, without reducing productivity as they incorporate cutting-edge technological solutions.
· Protective ADF filter with TrueColor technology, which allows you to see real colors during the welding process, increasing clarity and giving a sense of real 3D vision.
Maximum filter quality 1/1/1/1
· 4 sensors, avoiding dark areas and the filter opening during the process.
· Ergonomic harness with 4 support points.
· Large field of vision 100x100
Filter Unit Features:
Nominal protection factor: TH3P (Europe).
Flow: Level 1 min. 170 nL/min Level 2220 nl/min.
Fan: High quality ball bearing,
Long life brushless motor.
Fuse: Electronic Fuse
Battery Type: Rechargeable Li-Ion
Battery capacity: 14.8V 2.2Ah1:10 h
Load cycles: > 500
Work time: Level 1 operation: 10h.
Level 2 operation: 9 h
Charging time: Approx. 2.5 hours
Max noise level: 60 db (A)
Signals optical and acoustic alarm for: Indication of
low battery, clogged filter and insufficient airflow.
Master filter: Type P3 TH3P R SL for TH3P system
Air duct: 900x31mm
Weight: 1097 grams. (Includes filter and battery).
Dimensions: 224x190x70mm
Standards: EN 12941
|
General
|
|
|---|---|
| Regulations | (UE) 2016/425 - EN175:1997 - EN379:2003+A1:2009 |
|
Tech
|
|
| Energy | Solar y Batería CR2450 reemplazable |
| Darck shade | 9/13 |
| Clear shace | 4 |
| Viewing area | 100x100mm |
| Optics quality | CE 1/1/1/1 |
| Delay time | 0,1 - 1,0s |
| Reaction time | 1/30000s |
| Sensors | 4 |
| Sensivity | Si (externo) |
| External polycarbonate | 114x134mm |
| Grinding function | DIN 4 (interno) |
|
Structural
|
|
| Weight | 600g |
|
Technologies
|
|
| Tecnologies | True Color , 4 sensors , Ergonomic , Large View , Light Weight , Low TIG Ready |
Accessories
![[10086] POLYCARBONATE EXTERIOR PROTECTOR 118x136 mm (5 pcs.)](/web/image/product.product/46613/image_1920/350x350)
![[10087] POLYCARBONATE INTERIOR PROTECTOR 109x105 mm (5 pcs.)](/web/image/product.product/46615/image_1920/350x350)
![[30277] MAIN FILTER TH3P HELLMET FLOW](/web/image/product.product/48519/image_1920/350x350)
![[30278] PREFILTER HELLMET FLOW](/web/image/product.product/48520/image_1920/350x350)
![[30280] BATTERY HELLMET FLOW](/web/image/product.product/48522/image_1920/350x350)
![[30284] HEAD GEAR HELLMET FLOW](/web/image/product.product/48527/image_1920/350x350)
![[30285] SWEATER HELLMET FLOW](/web/image/product.product/48528/image_1920/350x350)
![[30287] SPARK PROTECTOR HELLMET FLOW](/web/image/product.product/48546/image_1920/350x350)
