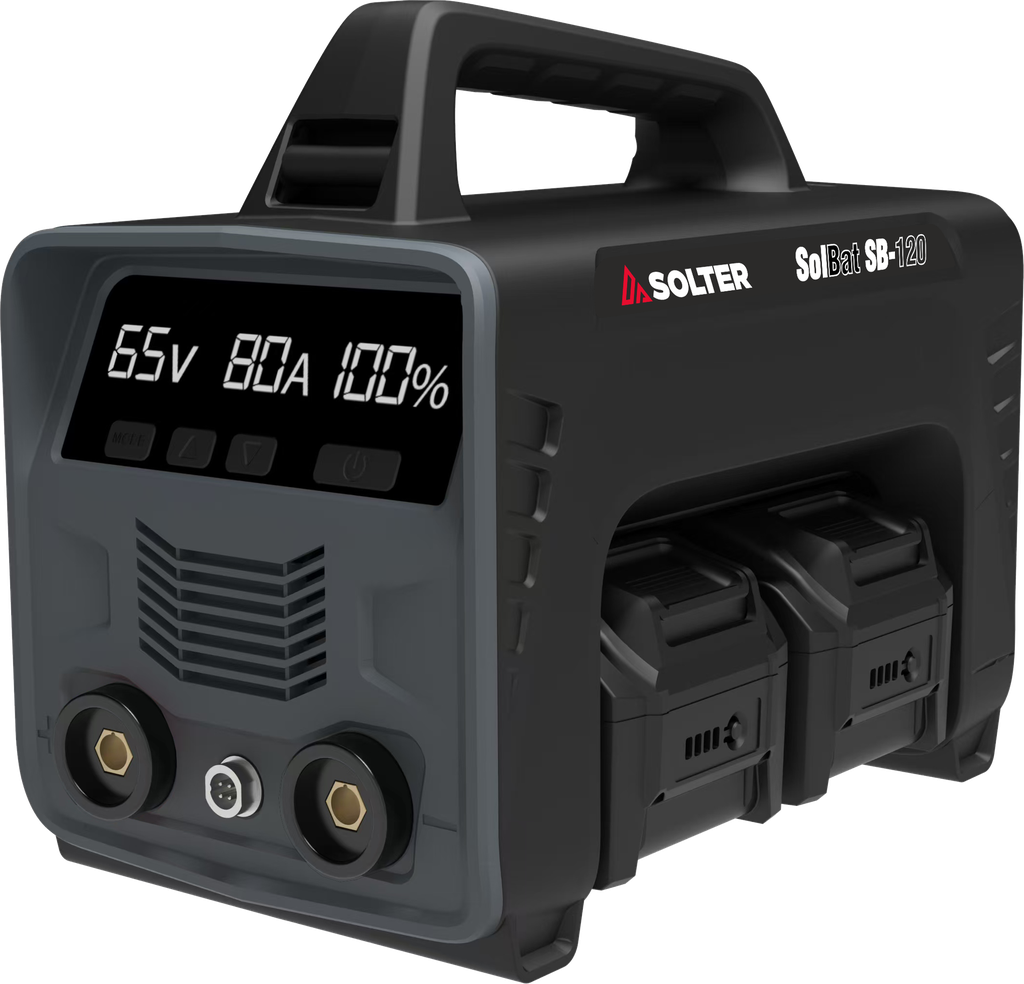

SOLBAT SB-120V
📌The SOLBAT SB-120V from SOLTER is a professional battery-powered MMA welding machine, ideal for jobs in areas without access to mains electricity. With a 120A output, it enables efficient welding with up to 7 electrodes of 2.5 mm or 14 of 2 mm on a single charge. It features a Dinse 10-25 connection system, and its two 8Ah Li-ion batteries (2x40V) recharge simultaneously using the included dual charger. Compact, robust, and equipped with an integrated digital display, it's the perfect solution for fieldwork, maintenance, or outdoor jobs where electricity doesn’t reach.
⚡ Weld where others can't.
Discover the SB-120V!
Share this product:
Key Features:
✅ Professional welding without electrical grid: The SB-120V operates with two 40V Li-ion batteries (80V total), allowing work in areas without power supply.
✅Real power and performance per charge: With its power, it allows welding up to 7 electrodes of 2.5 mm or 14 electrodes of 2 mm on a single full charge.
✅ Advanced digital display: Shows voltage, current, and battery status. Regulation range from 5A to 120A, ideal for multiple applications.
✅Compatible electrodes: Rutile, basic, and stainless steel. Ideal for welding in installations, maintenance, or repair.
✅ Efficient dual charger: Both batteries recharge simultaneously in a single cycle. Estimated charging time: 90 to 120 minutes.
✅Compact and professional design: With a total weight of just 4 kg and dimensions of 266 x 158 x 220 mm, the SB-120V is perfect for transport and field use.
✅ Integrated thermal protection: Cut-off system at 75 °C to ensure safety and extend service life.
✅ Suitable for demanding conditions: Operates between –15°C and +40°C, protected with IP21 insulation.
💡Solter has created a real solution for welding without limitations: no grid, no generator, and no compromise on quality. The SB-120V is the evolution of portable welding.
|
General
|
|
|---|---|
| Product Code | 10684 |
| Use | Repair, maintenance, field welding |
| Regulations | EN 60974-1, EN 60974-10, Clase A |
| Regulation | 5A – 120A / 160A |
|
Tech
|
|
| Corriente nominal | 120A |
| Tipo batería | Li-ion, modelo BAT-20V , BAT 20V / 40V Li-Ion |
| Conexiones | DINSE 10-25 , DINSE (+) y (-) |
| Tensión de trabajo | 65V |
| Usable electrodes MMA | Rutílico / Básico / Inoxidable |
|
Electric
|
|
| Corriente de entrada | 100-230Vac (cargador) |
|
Structural
|
|
| Weight | 6,85 kg (equipo completo) |
| Dimensions | 28 × 37,5 × 32 cm (Prof. × Anch. × Alt.) |
| Regulation board | Electrónico con interfaz táctil |
| Ventilation | Por demanda (automática) |
|
Uncategorized
|
|
| Tipos de Soldadura | MMA (electrodo revestido) |
| Modelo | SOLBAT SB-120 |
