AEROPROCESS C 2000

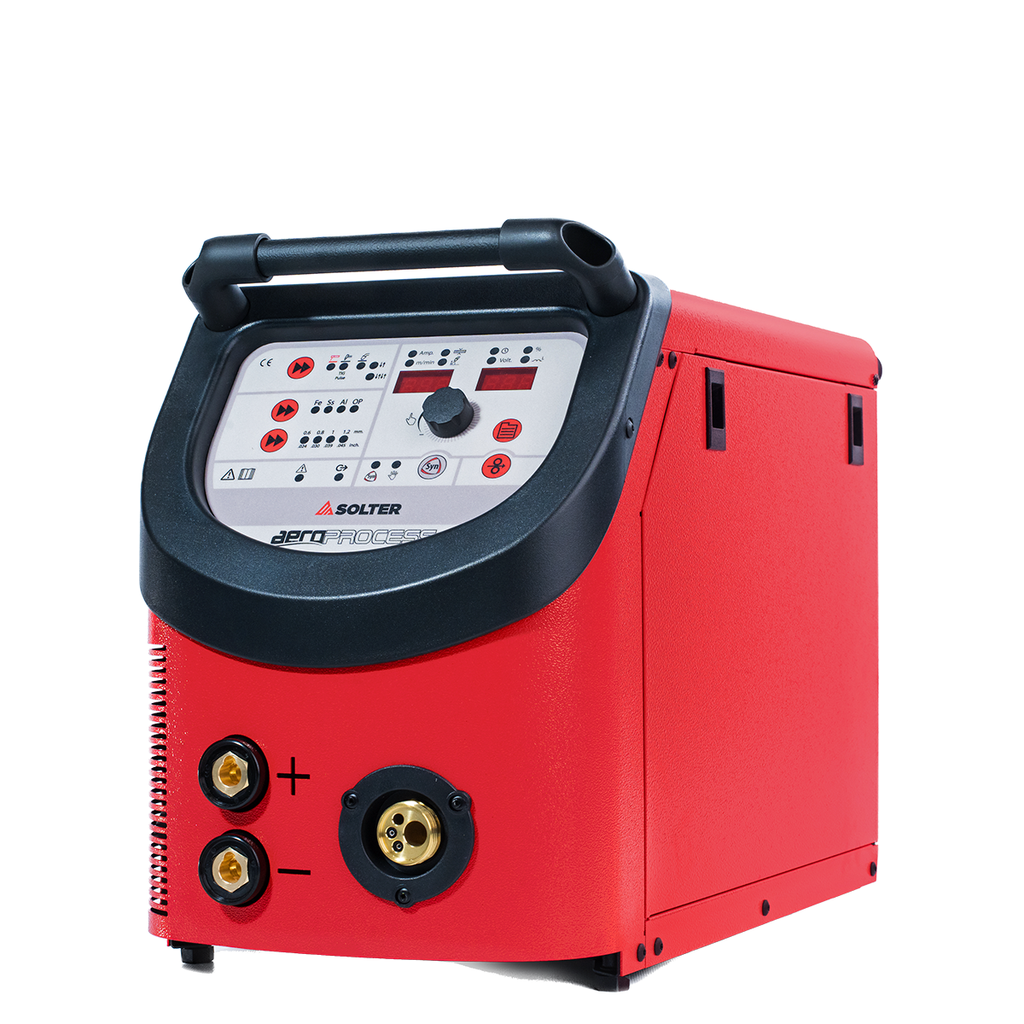

The AEROPROCESS C 2000 is a Synergic Multiprocess MIG welding machine designed to provide versatile and precise solutions for MIG-MAG, TIG Lift-Arc, and MMA processes. With a 200-amp power capacity and a duty cycle of 45% at 40°C, this machine guarantees exceptional results on steel, aluminum, and stainless steel. Its compact design and compatibility with 230V single-phase (1ph) connections ensure efficient use in any work environment.
Additionally, it is compatible with D300 wire reels (15 kg) and includes a standard ground clamp. The AEROPROCESS C 2000 stands out for its intelligent synergic control, the ability to store up to 10 programs and advanced features such as precise arc adjustment and wire consumption monitoring. This makes it an all-in-one solution for workshops, industries, and applications requiring flawless finishes.
Share this product:
Available Packs
Ref:
K0106
AEROPROCESS C 2000 (0,8)
Ref:
K0222
AEROPROCESS C 2000 (1,0)
Ref:
K0249
KIT MULTIPROCESS AEROPROCESS C 2000
Main features:
· Multiprocess Versatility: Multifunction wire machine for MIG-MAG processes (with and without gas), TIG Lift-Arc, and MMA. Ideal for materials such as steel, aluminum, stainless steel, and copper, delivering flawless results even in demanding applications.
· Intelligent Synergic Control: Simplified setup with job pre
· Power and Precision: Adjustable range from 20 to 200 amps with a duty cycle of 45% at 40ºC, regulated by wire speed (m/min) and current (Amp), ensu
· Excellent Preconfigured Results: Optimized programs for welding carbon steel (SG3), stainless steel (Ss-309, Ss-316), aluminum (AL-5356, AL-4043), copper-silicon (CuSi3), and flux-cored wires (Fc-Rutile, Fc-Basic, Fc-316), including gasless flux-cored (E71T-GS).
· Robust and Compact Design: Weighing 19 kg and featuring dimensions of 600x272x380 mm, it combines portability with durability. Compatible with D300 wire reels (15 kg) and equipped with forced ventilation for extended lifespan.
· Accessory Compatibility: Includes a standard ground clamp and supports multiple torches and rollers, adapting to various needs.
Trust Solter. Add the AEROPROCESS C 2000 to your equipment and maximize your productivity!
General
|
|
---|---|
Intensity at 60%(100%) a 40ºC | 170A (130A) |
Intensity MAX. | 200A |
Regulations | UNE EN 60974-1 EN 60974-10 Clase A |
Regulation | 20 - 200A (15-24V) |
Duty Cycle at 40ºC | 45% |
Tech
|
|
Usable wire coil | D300 - 15kg |
Usable electrodes MMA | 1,6mm - 4,0mm |
Usable electrodes TIG | 1,6mm - 3,2mm |
Motor max power | 30W |
Wire feeder rolls | 2R |
Wire speed | 0.....10m/min |
Electric
|
|
Supply Voltage | 230V - 1Ph |
Fuse | 25A |
Absorved power max. | 9kva |
OCV | 74V |
Structural
|
|
Dimensions | 600x272x380mm |
Protection index | IP23 |
Regulation board | AEROPROCESS SYNERGIC |
Weight | 19 kg |
Ventilation | FORCED |
Technologies
|
|
Tecnologies | Digital , Gas / No gas , Multiprocess , Synergic , TIG lift |
Uncategorized
|
|
Hilo utilizable gas | 0,6 - 1,0mm |
Hilo utilizable no gas | 0,8 - 1,2mm |
