Ref. K0013


619.00 € 619.0 EUR Precio con iva: 748.99 € 619.00 €

619.00 €

  • Supply Voltage
  • Dimensions
  • Usable electrodes MMA
  • Usable electrodes TIG
  • Fuse
  • Protection index
  • Intensity at 60%(100%) a 40ºC
  • Intensity MAX.
  • Standards
  • Regulation board
  • Weight
  • Absorved power max.
  • Regulation
  • Voltage range
  • Duty Cycle at 40ºC
  • Ventilation
  • OCV

This combination does not exist.

· TIG DC equipment with high frequency (HF).
· Power of 180A at 60%.

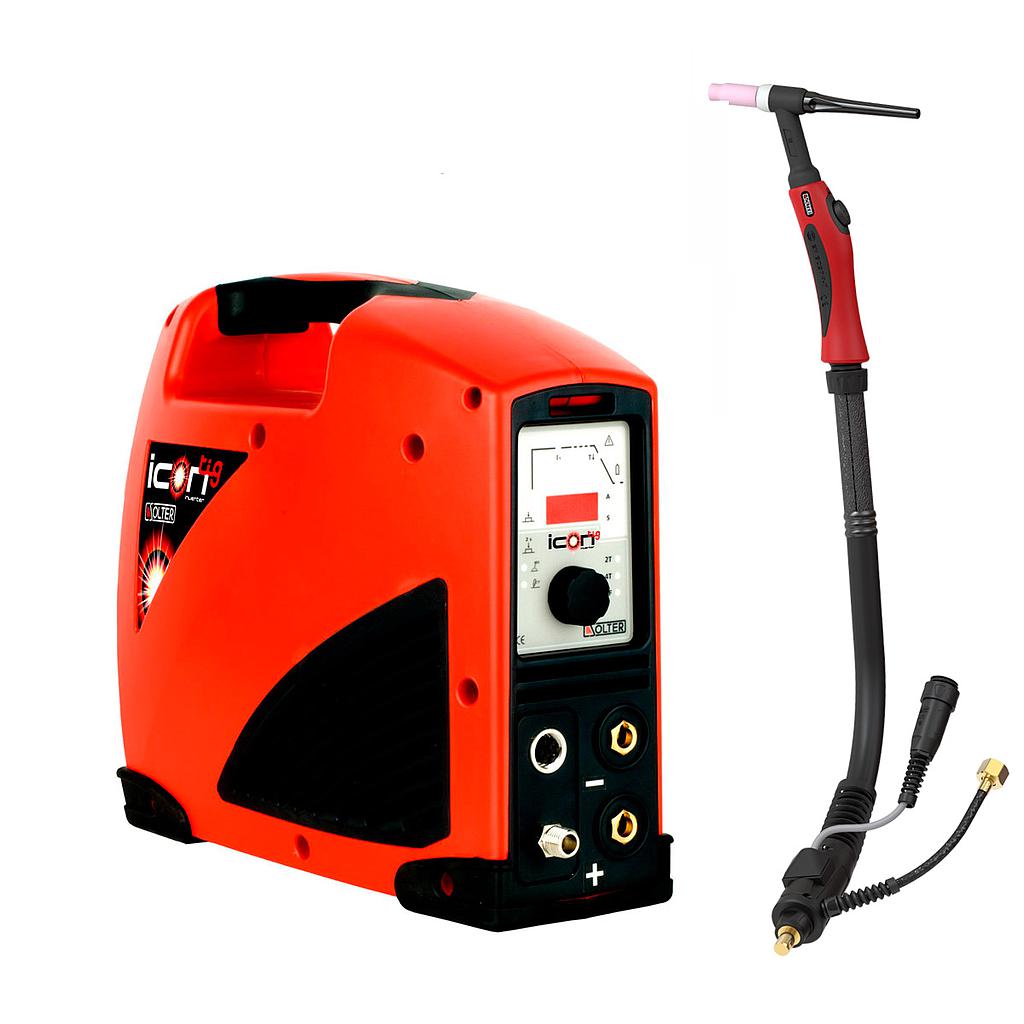

· Supplied with ground clamp set and 4m SR-17 TIG torch.

Share this product:

iCONTIG equipment is the best compromise between precision and power. Due to its patented and innovative DDR construction design, due to its great capacity to work under intensive conditions and demanding environments and due to its unmatched results in terms of reliability, performance and power, this is undoubtedly the best option for the most demanding professionals.

Main features:

· Stability and arc control, regardless of the electrode-material distance thanks to regulation by ARCSENSE.
· Double automatic ventilation, acting only when the equipment requires it.
· STAND-BY position, when the equipment is not in operation.
· Equipped with Anti-stick, Arc-Force, Hot-Start and Lift-Arc / HF (TIG) devices.
· Connectable to generators with a wide range of working voltage.

Intensity at 60%(100%) a 40ºC 140A (110A)
Intensity MAX. 180A
Regulation 10 - 180A
Duty Cycle at 40ºC 45%
Usable electrodes MMA 1,6mm - 4,0mm
Usable electrodes TIG 1,6mm - 2,4mm
Supply Voltage 230V-1ph
Fuse 16A
Absorved power max. 6,5KVA
Voltage range 10-180A (10,4 - 17,2V)
Dimensions 320x135x285 mm
Protection index IP23C
Standards 060974-1 , 060974-10
Regulation board iCONTIG “basic”
Weight 4,9 kg
Ventilation Doble / Double AUTO
