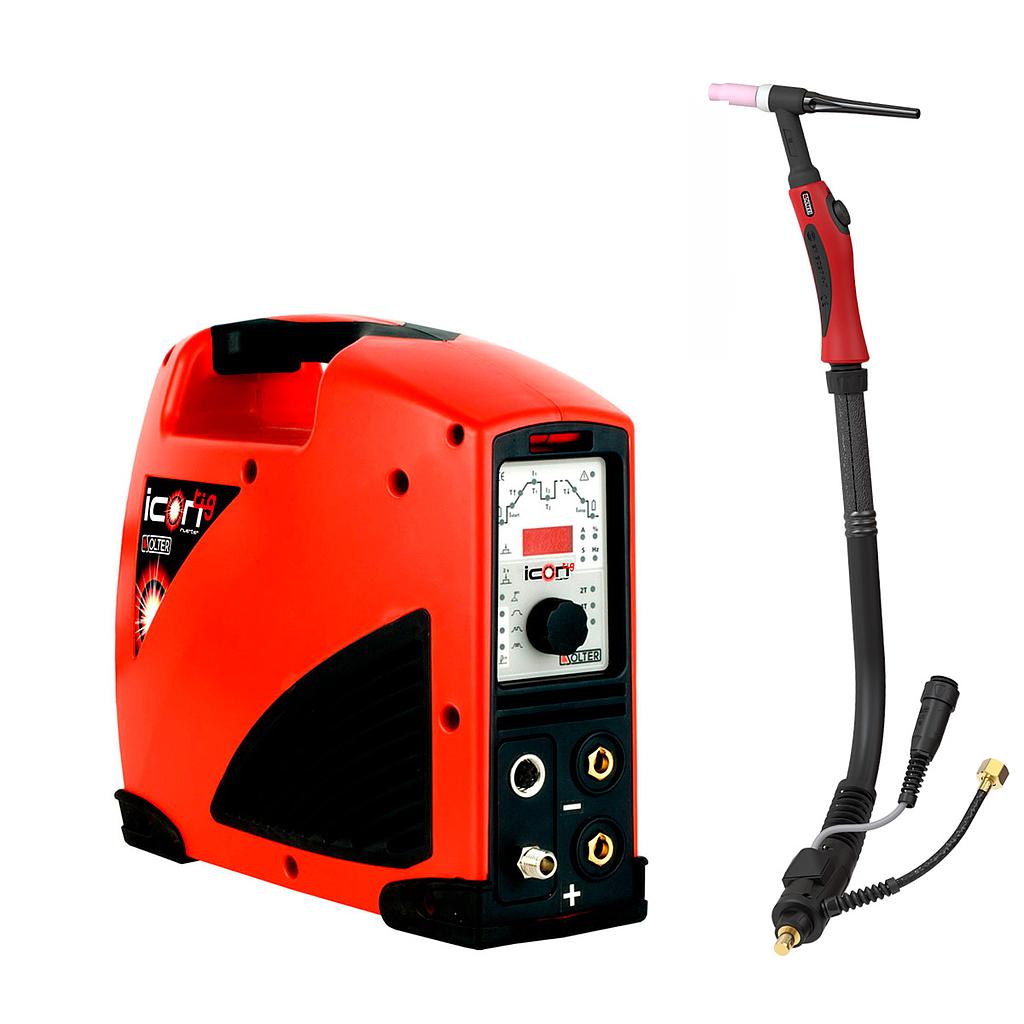

ICONTIG 1990 HF PULSE + TORCH SR-17 4M
📌 The KIT ICONTIG 1990 HF PULSE takes your welding experience to the next level with a set designed for the most demanding welders. This kit combines the ICONTIG 1990 HF PULSE welder, featuring advanced INVERTER technology and high-frequency pulsed arc, with the TIG Torch 4M SR-17 D10/25, renowned for its precision and ergonomics. Designed to deliver flawless results on stainless steel, nickel alloys, and other high-demand materials, this equipment ensures absolute control over the welding process, energy efficiency, and unmatched durability. If you seek top quality, performance, and technology in a single package, this is the equipment you need.
Invest in excellence with Solter!
Share this product:
Main Features:
✅ State-of-the-art INVERTER technology: Greater arc stability, reduced power consumption, and optimized performance.
✅ High-frequency pulsed arc: Exceptional control of the weld pool, minimizing distortions and ensuring perfect aesthetic finishes.
✅ Non-contact HF ignition: Prevents contamination and ensures an instant and precise arc start in every weld.
✅ Intuitive digital interface: Quick and precise adjustment of all parameters, allowing customized welds for each material.
✅ High-performance TIG Torch 4M SR-17 D10/25: 4-meter cable, DINSE 10-25 connector, and compatibility with 0.5 to 2.4 mm electrodes for maximum versatility.
✅ 60% duty cycle at 160A: Ideal for heavy-duty work without interruptions, ensuring productivity in every session.
✅ Full protection system: Includes thermal sensors and voltage monitoring to prevent overloads and extend the equipment’s lifespan.
✅ Intelligent ventilation: Optimizes airflow to prevent dust accumulation, enhancing performance and reducing maintenance.
✅ Compatible with electric generators: Ideal for demanding work environments, even without access to a stable power grid.
💡 Solter offers you technology, reliability, and precision for limitless welding. Trust the leader in innovation.
General
|
|
---|---|
Intensity at 60%(100%) a 40ºC | 140A (110A) |
Intensity MAX. | 180A |
Regulations | EN 60974-1, EN 60974-10 |
Regulation | 10 - 180A |
Duty Cycle at 40ºC | 45% |
Tech
|
|
Usable electrodes MMA | 1,6mm - 4,0mm |
Usable electrodes TIG | 1,6mm - 2,4mm |
Frecuencia de pulsado TIG | 500Hz |
Electric
|
|
Supply Voltage | 230V-1ph |
Fuse | 16A |
Absorved power max. | 6,5KVA |
Voltage range | 10-180A (10,4 - 17,2V) |
OCV | 80V |
Structural
|
|
Dimensions | 320x135x285 mm |
Protection index | IP23C |
Regulation board | iCONTIG “pulse” |
Weight | 4,9 kg |
Ventilation | Doble / Double AUTO |
Technologies
|
|
Tecnologies | TIG HF , TIG lift , TIG pulse , TAC , Digital , Generator OK |
