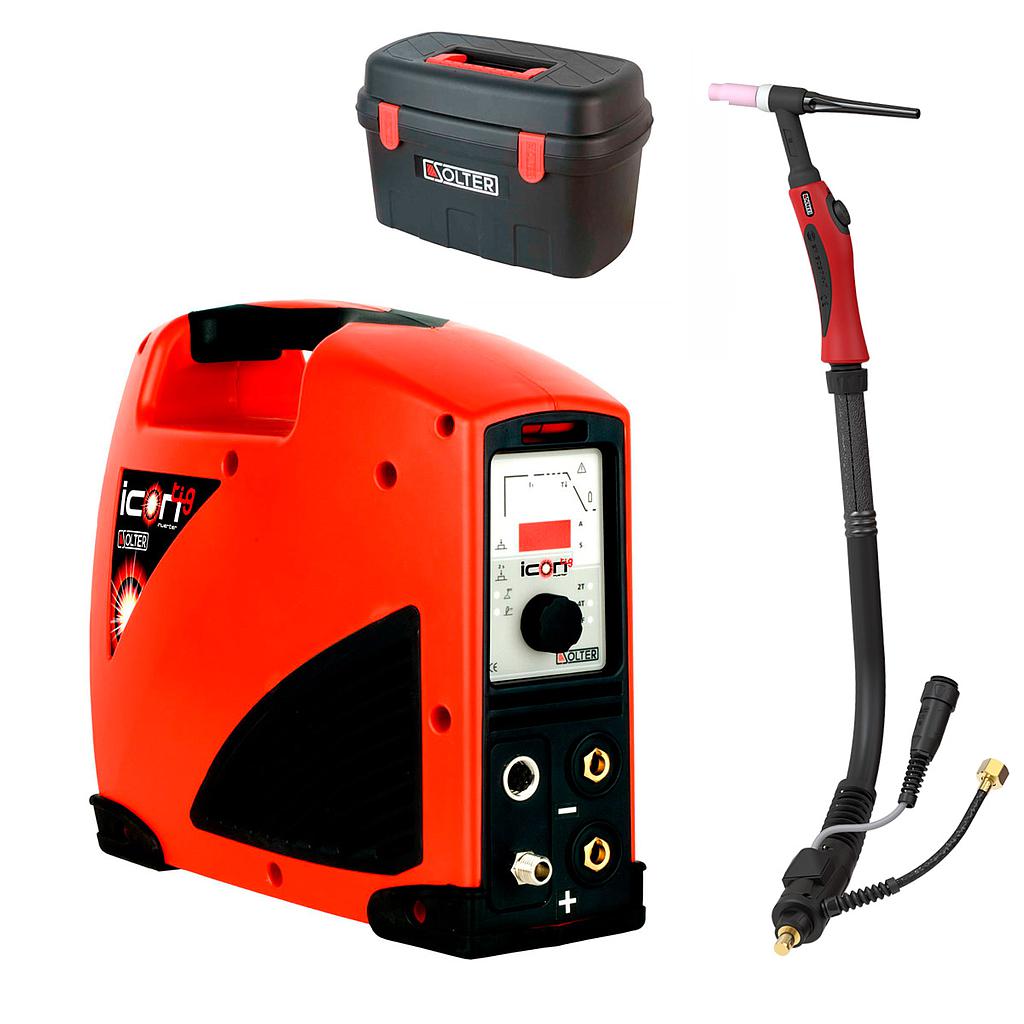

iCONTIG equipment is the best compromise between precision and power. Due to its patented and innovative DDR construction design, due to its great capacity to work under intensive conditions and demanding environments and due to its unmatched results in terms of reliability, performance and power, this is undoubtedly the best option for the most demanding professionals.
Main features:
· Stability and arc control, regardless of the electrode-material distance thanks to regulation by ARCSENSE.
· Double automatic ventilation, acting only when the equipment requires it.
· STAND-BY position, when the equipment is not in operation.
· Equipped with Anti-stick, Arc-Force, Hot-Start and Lift-Arc / HF (TIG) devices.
· Connectable to generators with a wide range of working voltage.
|
General
|
|
|---|---|
| Intensity at 60%(100%) a 40ºC | 140A (110A) |
| Intensity MAX. | 180A |
| Regulations | 060974-1 , 060974-10 |
| Regulation | 10 - 180A |
| Duty Cycle at 40ºC | 45% |
|
Tech
|
|
| Usable electrodes MMA | 1,6mm - 4,0mm |
| Usable electrodes TIG | 1,6mm - 2,4mm |
|
Electric
|
|
| Supply Voltage | 230V-1ph |
| Fuse | 16A |
| Absorved power max. | 6,5KVA |
| Voltage range | 10-180A (10,4 - 17,2V) |
| OCV | 80V |
|
Structural
|
|
| Dimensions | 320x135x285 mm |
| Protection index | IP23C |
| Regulation board | iCONTIG “basic” |
| Weight | 4,9 kg |
| Ventilation | Doble / Double AUTO |
