Main features:

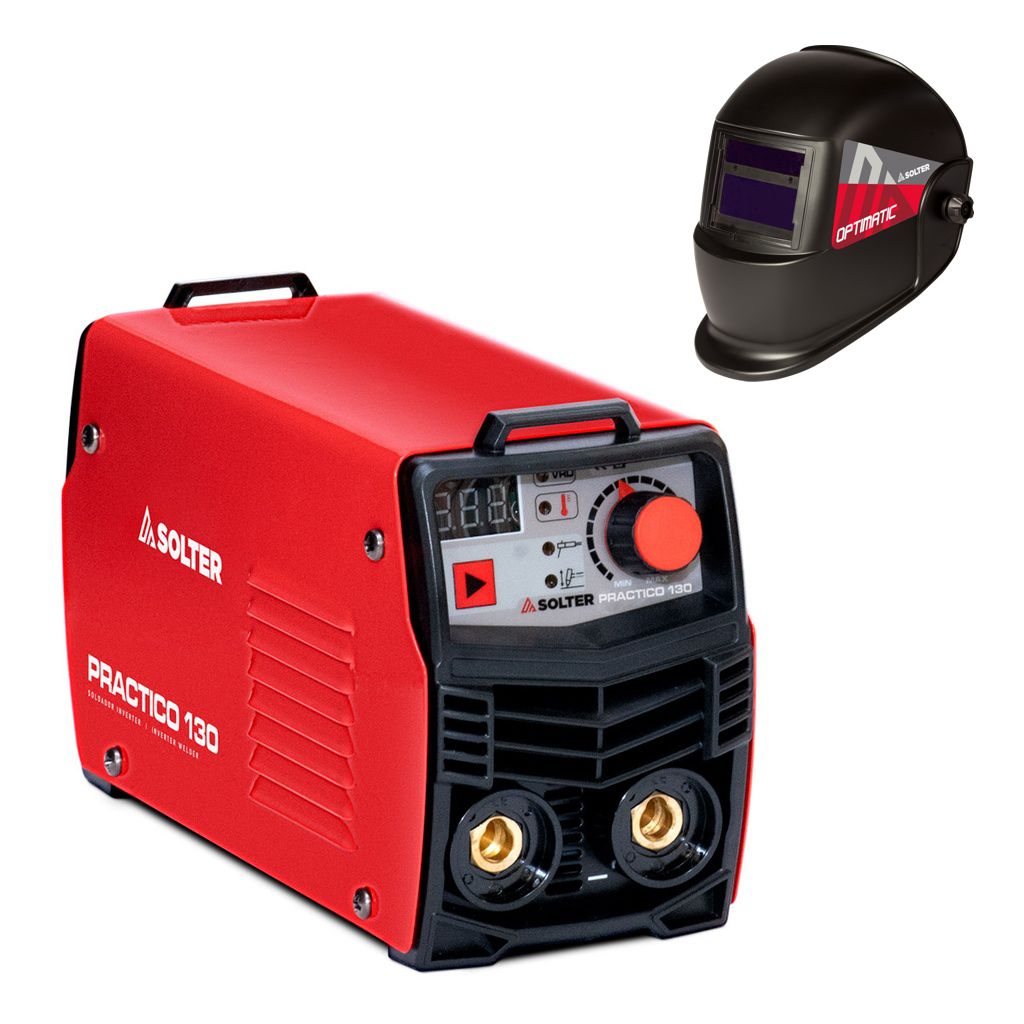

The PRACTICO models are equipment within the INVERTER MINI segment for welding with covered electrodes and TIG, achieving an unbeatable weight-performance ratio. All this, at an extremely competitive price.
·Unmatched power-to-weight ratio.
· Ease of use thanks to INVERTER technology supplying direct current DC.
· Minimum consumption due to its high energy efficiency.
· Connectable to generators with a wide range of voltages of use.
· Equipped with Arc-Force and Hot-Start devices
.Possibility of TIG welding
|
General
|
|
|---|---|
| Duty Cycle at 40ºC | 40% |
| Regulation | 10 - 130A |
| Intensity MAX. | 130A |
| Intensity at 60%(100%) a 40ºC | 80A |
| Regulations | EN60974-1 |
|
Tech
|
|
| Usable electrodes TIG | 1,6mm - 3,2mm |
| Usable electrodes MMA | 1,6 - 3,2 mm |
|
Electric
|
|
| OCV | 62V |
| Voltage range | 220V - 240V |
| Absorved power max. | 7kva |
| Fuse | 16A |
| Supply Voltage | 230V - 1Ph |
|
Structural
|
|
| Ventilation | FORCED |
| Weight | 2Kg |
| Regulation board | SOLTER DIGITAL |
| Protection index | IP21 |
| Dimensions | 210x100x137mm |
|
Technologies
|
|
| Tecnologies | Hot-Start , Generator OK , Anti STICK , Arc Force |
