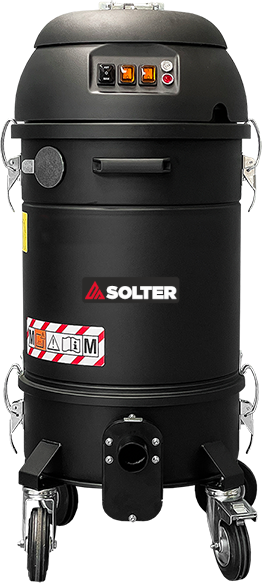

The SOLVAC PRO 200 industrial welding fume extractor is the ideal solution for extracting fumes directly from the MIG-MAG welding torch. This extractor from the Solter welding fume range is equipped with a powerful By-Pass motor that guarantees up to 190 m3/h of air flow. The vacuum cleaner can be turned on and off directly by the equipment, thanks to a sophisticated sensor placed on the vacuum cleaner that allows it to detect when there is a current flow in the ground wire located in the special clip, or controlled manually. The SOLVAC PRO 200 industrial vacuum cleaner allows you to filter welding fumes in complete safety thanks to the possibility of installing up to 3 filtration levels with an integrated cleaning system. On request it is also possible to install an H14 filter.
Direct connection to the welding torch, or suction through a fume extraction hood.
On and off directly by the equipment.
Up to 3 filtration levels with integrated filter cleaning system.
Tech
|
|
---|---|
Motor type | By-Pass |
Maximum depression | 250 mBar |
Maximum air flow | 190 m3/h |
Noise level | 72 dB(A) |
Electric
|
|
Supply Voltage | 230V-1ph |
Structural
|
|
Dimensions | 534x471x983mm |
Weight | 36kg |
