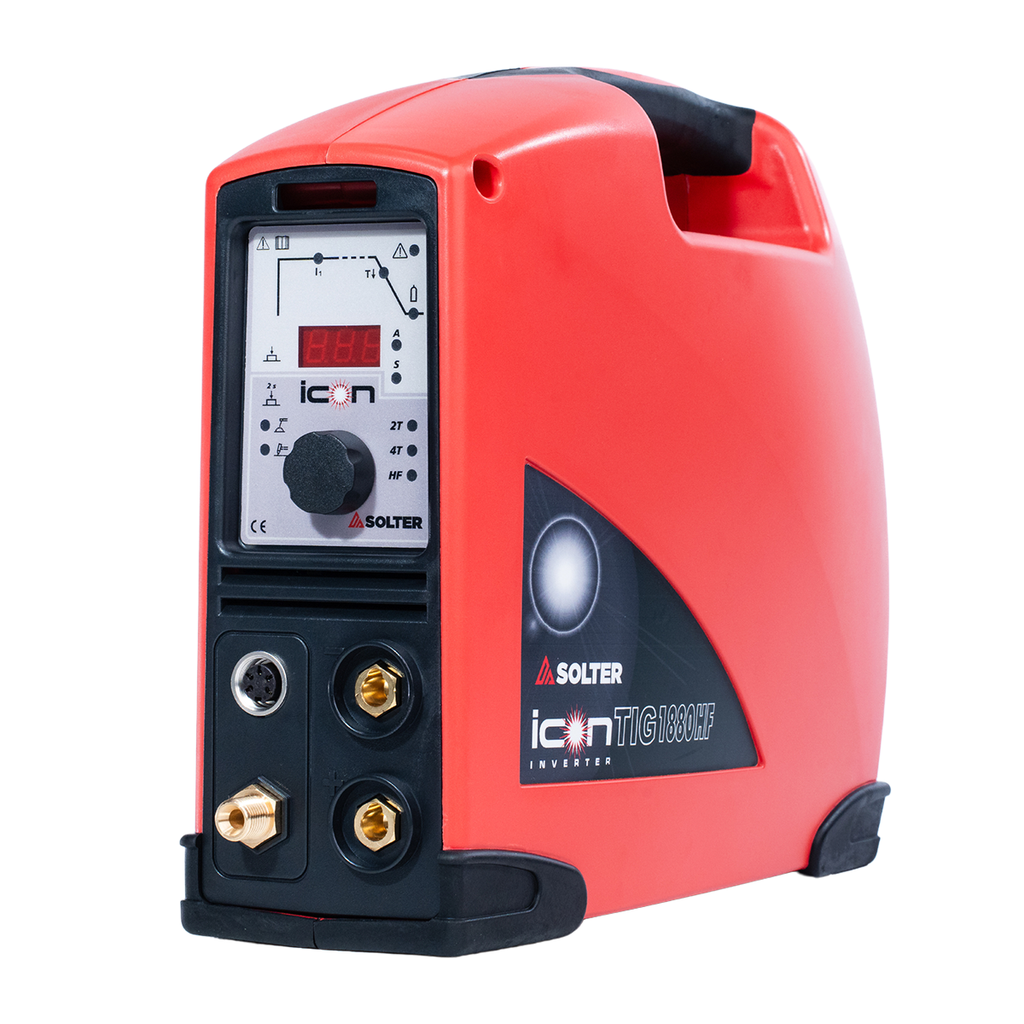

ICONTIG 1880 HF
📌\xa0El ICONTIG 1880 HF de Solter redefine la soldadura profesional\xa0con su avanzada tecnología TIG DC y encendido\xa0por alta frecuencia (HF). Diseñado para quienes exigen\xa0precisión y estabilidad, este equipo ofrece un rango de corriente de\xa010 A – 180 A\xa0y un\xa0ciclo de trabajo optimizado, garantizando un rendimiento fiable incluso en condiciones exigentes.
\n\nSu construcción robusta con\xa0diseño DDR patentado\xa0proporciona una mayor resistencia a impactos, mientras que su\xa0peso ligero de solo 4,9 kg\xa0facilita el transporte. La\xa0compatibilidad con generadores eléctricos\xa0y su\xa0sistema de ventilación inteligente\xa0lo convierten en la herramienta ideal para\xa0mantenimiento industrial, fabricación metálica y trabajos en campo.\xa0Invierte en tecnología, calidad y eficiencia con Solter.
Comparte este producto:
Main Features:
✅ ARCSENSE Regulation: Ensures arc stability at all times, allowing precise control between the electrode and the material.
✅ HF and Lift-Arc Ignition: Starts the arc without contact, preventing electrode contamination and ensuring a clean and stable weld.
✅ Power and Performance: Range of 10 A - 180 A in TIG and 160 A in MMA, with an optimized duty cycle of 45% at 180 A, 60% at 140 A, and 100% at 110 A, ensuring precision and efficiency for long work sessions.
✅ Advanced Functions: Includes Anti-Stick, Arc-Force, Hot-Start, and Lift-Arc/HF (TIG), optimizing arc stability, improving ignition, and preventing electrode sticking.
✅ Dual Automatic Ventilation: Its intelligent cooling system activates only when necessary, reducing equipment wear and improving energy efficiency.
✅ STAND-BY Mode: Saves energy by entering a low-power state when the equipment is not in use, extending the lifespan of its components.
✅ Robust and Portable Design: With a weight of 4.9 kg, compact dimensions, and IP23C protection, it provides durability and easy transport for demanding industrial environments.
✅ Generator Compatibility: Works with electric generators with a wide voltage range, allowing welding in any location without relying on a stable power grid.
💡 ICONTIG 1880 HF is the ultimate tool for professionals seeking precision, efficiency, and the latest technology in every weld.
| General | |
|---|---|
| Duty Cycle at 40ºC | 45% |
| Regulation | 10 - 180A |
| Intensity MAX. | 180A |
| Intensity at 60%(100%) a 40ºC | 140A (110A) |
| Regulations | 060974-1 , 060974-10 |
| Tech | |
| Usable electrodes TIG | 1,6mm - 2,4mm |
| Usable electrodes MMA | 1,6mm - 4,0mm |
| Electric | |
| OCV | 80V |
| Voltage range | 10-180A (10,4 - 17,2V) |
| Absorved power max. | 6,5KVA |
| Fuse | 16A |
| Supply Voltage | 230V-1ph |
| Structural | |
| Ventilation | Doble / Double AUTO |
| Weight | 4,9 kg |
| Regulation board | iCONTIG “basic” |
| Protection index | IP23C |
| Dimensions | 320x135x285 mm |
