Ref. 04110

INVERTER STYL 205 PRO + CASE

564.00 € 564.0 EUR Precio con iva: 682.44 € 564.00 €

564.00 €


  • Supply Voltage
  • Dimensions
  • Usable electrodes MMA
  • Usable electrodes TIG
  • Fuse
  • Protection index
  • Intensity at 60%(100%) a 40ºC
  • Intensity MAX.
  • Ieff
  • Regulations
  • Regulation board
  • Weight
  • Absorved power max.
  • Regulation
  • Voltage range
  • Duty Cycle at 40ºC
  • Ventilation
  • OCV
  • I₁max

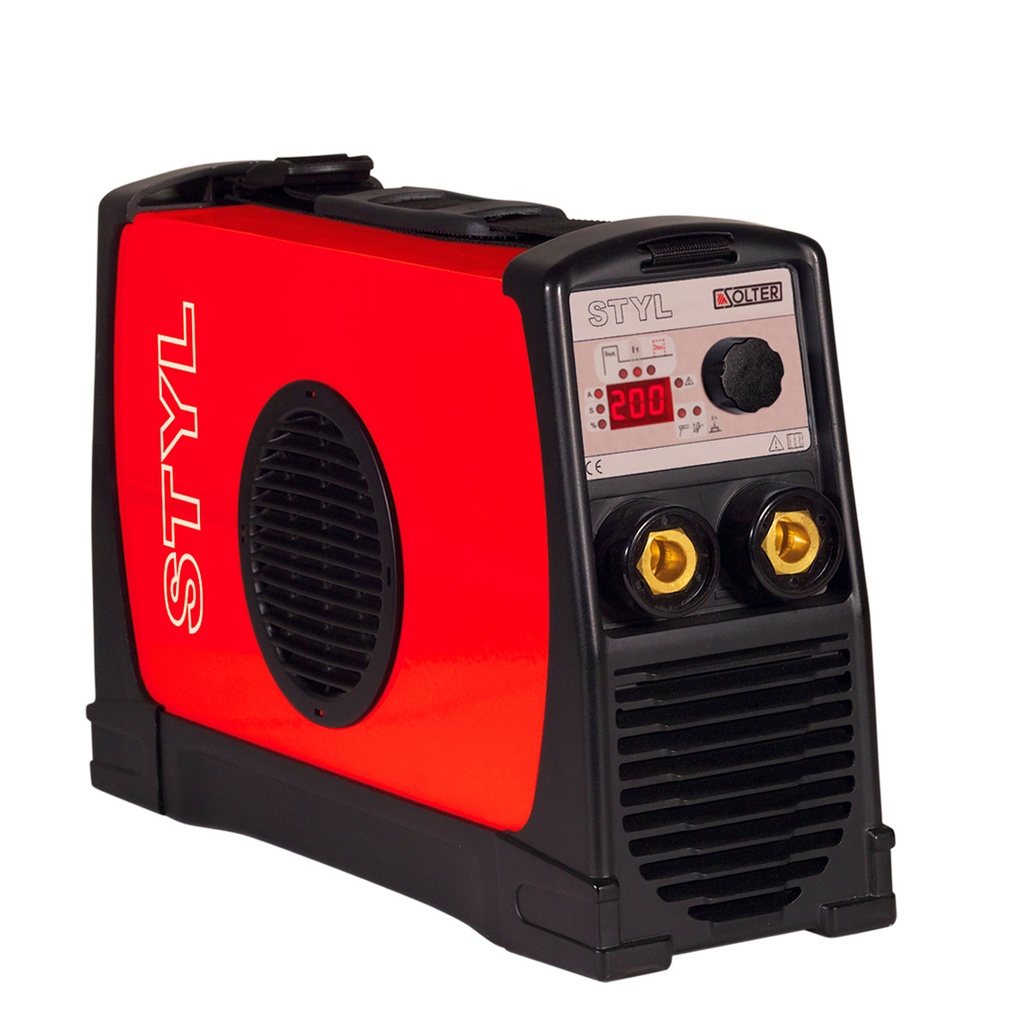

📌INVERTER STYL 205 PRO is a compact and advanced welding machine that combines 200A at 60% power with outstanding energy efficiency. Supplied with a carrying case and welding accessories, it is ideal for industrial and maintenance tasks. This model is generator-compatible and features LIFT-ARC TIG technology, along with a digital front panel for ease of use. Its advanced functions such as Anti-Stick, Arc-Force, and Hot-Start ensure professional results in any application.







Share this product:

Principales Características:

Exceptional power and performance: The INVERTER STYL 205 PRO delivers a maximum intensity of 200A at 60%, enabling welding tasks with excellent arc stability. It is ideal for MMA and TIG welding, thanks to its Lift-Arc technology, which ensures a clean and contamination-free ignition.

Portable and durable design: Weighing only 7.5 kg and featuring compact dimensions (390 x 120 x 245 mm), it is easy to transport and store without compromising robustness. Its IP23C protection rating makes it suitable for working in demanding industrial environments and harsh conditions.

Advanced functions for better results: Integrates technologies such as Anti-Stick, which prevents the electrode from sticking; Arc-Force, which stabilizes the arc in critical situations; and Hot-Start, which facilitates ignition under any condition. Its intuitive digital panel ensures easy operation, making it ideal for users of all skill levels.

Energy efficiency and versatility: Generator compatible, the equipment operates efficiently within an input voltage range of 180V to 280V, adapting to various electrical conditions. Its 9.5 kVA power consumption and 16A fuse ensure optimal energy performance while minimizing consumption.

Complete accessories to start immediately: Includes a durable carrying case and essential welding accessories such as cables, clamps, and connectors, allowing the user to start working right away. Additionally, it is compatible with optional accessories such as TIG torches and AR/CO2 regulators to expand its capabilities.

💡With the INVERTER STYL 205 PRO, every project becomes a demonstration of quality and reliability. Trust Solter, where innovation and durability are guaranteed.

General
Intensity at 60%(100%) a 40ºC 200A (140A)
Intensity MAX. 200A
Regulations EN-60974-1, EN-60974-10
Regulation 10-200A (20,4 -28V)
Duty Cycle at 40ºC 60%
Tech
Usable electrodes MMA 1,6 - 4,00 mm
Usable electrodes TIG 1,0 - 3,2 mm
Electric
Supply Voltage 230V - 1Ph
Fuse 16A
Ieff 29A
Absorved power max. 9,5KVA
Voltage range 180V - 280V
OCV 80V
I₁max 38A
Structural
Dimensions 390x120x245mm
Protection index IP23C
Regulation board SOLTER DIGITAL
Weight 7,5 kg
Ventilation DOBLE
