Ref. 04194

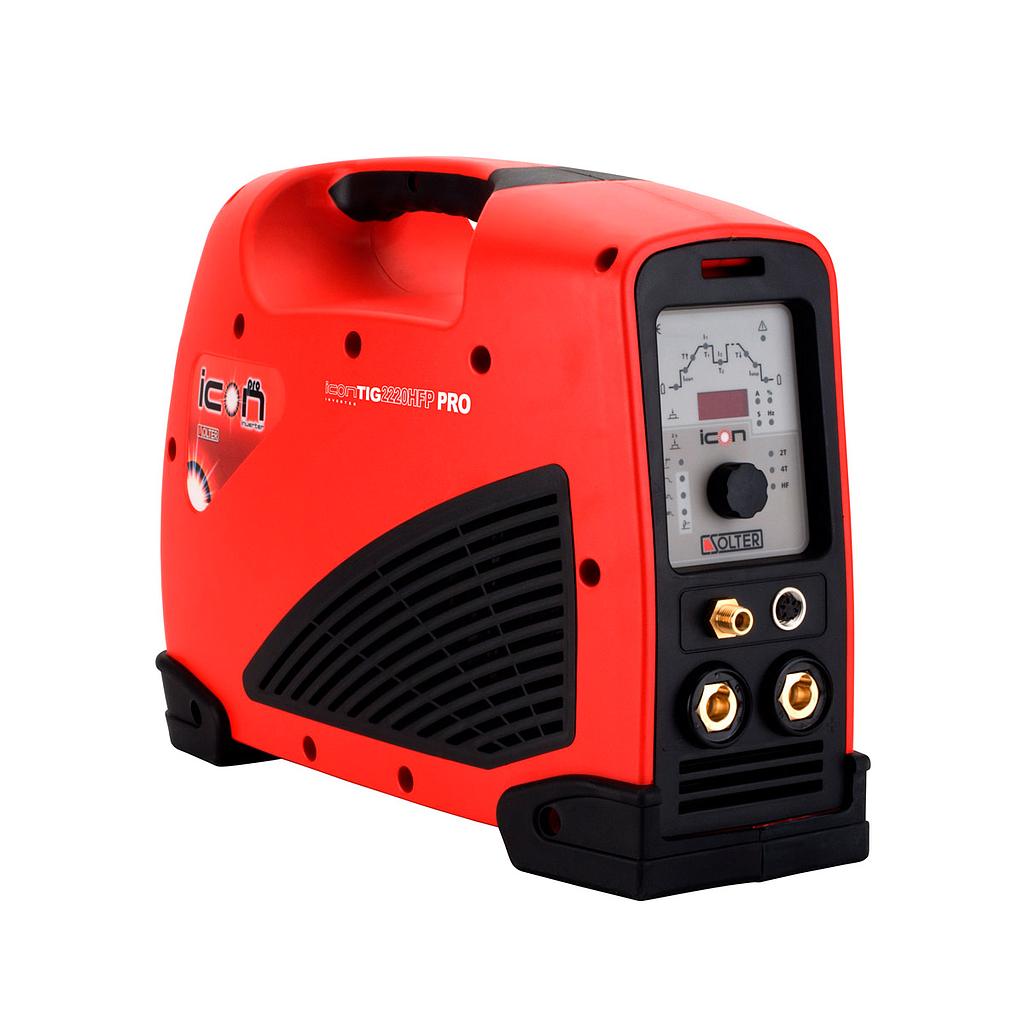

ICONTIG 2220 HF PULSE PRO

945.00 € 945.0 EUR Precio con iva: 1143.45 € 945.00 €

945.00 €


  • Supply Voltage
  • Dimensions
  • Usable electrodes MMA
  • Usable electrodes TIG
  • Frecuencia de pulsado TIG
  • Fuse
  • Protection index
  • Intensity at 60%(100%) a 40ºC
  • Intensity MAX.
  • Regulations
  • Regulation board
  • Weight
  • Absorved power max.
  • Regulation
  • Voltage range
  • Duty Cycle at 40ºC
  • Ventilation
  • OCV

· TIG DC PULSED equipment with high frequency (HF).
· Power of 220A at 60%.

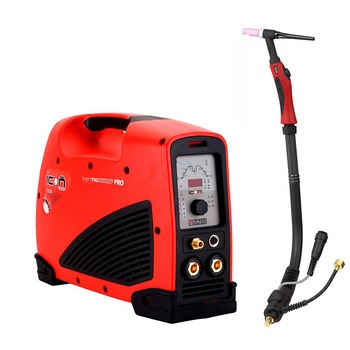

· Supplied with ground clamp set and 4m SR-17 TIG torch.







Share this product:

iCONTIG equipment is the best compromise between precision and power. Due to its patented and innovative DDR construction design, due to its great capacity to work under intensive conditions and demanding environments and due to its unmatched results in terms of reliability, performance and power, this is undoubtedly the best option for the most demanding professionals.

Main features:

· Stability and arc control, regardless of the electrode-material distance thanks to regulation by ARCSENSE.
· Double automatic ventilation, acting only when the equipment requires it.
· STAND-BY position, when the equipment is not in operation.
· Equipped with Anti-stick, Arc-Force, Hot-Start and Lift-Arc / HF (TIG) devices.
· Connectable to generators with a wide range of working voltage.

General
Intensity at 60%(100%) a 40ºC 180A (140A)
Intensity MAX. 220A
Regulations EN 60974-1, EN 60974-10
Regulation 10-220A
Duty Cycle at 40ºC 50%
Tech
Usable electrodes MMA 1,6mm - 4,0mm
Usable electrodes TIG 1,6 - 3,2mm
Frecuencia de pulsado TIG 2000Hz
Electric
Supply Voltage 230V-1ph
Fuse 25A
Absorved power max. 8,5KVA
Voltage range 120V - 310V
OCV 68V
Structural
Dimensions 430x175x325 mm
Protection index IP23C
Regulation board iCONTIG “pulse”
Weight 7,2 Kg
Ventilation Doble / Double AUTO
