Ref. 04176

ICONTIG 1880 HF

610.00 € 610.0 EUR Precio con iva: 738.10 € 610.00 €

610.00 €


  • Supply Voltage
  • Dimensions
  • Usable electrodes MMA
  • Usable electrodes TIG
  • Fuse
  • Protection index
  • Intensity at 60%(100%) a 40ºC
  • Intensity MAX.
  • Regulations
  • Regulation board
  • Weight
  • Absorved power max.
  • Regulation
  • Voltage range
  • Duty Cycle at 40ºC
  • Ventilation
  • OCV

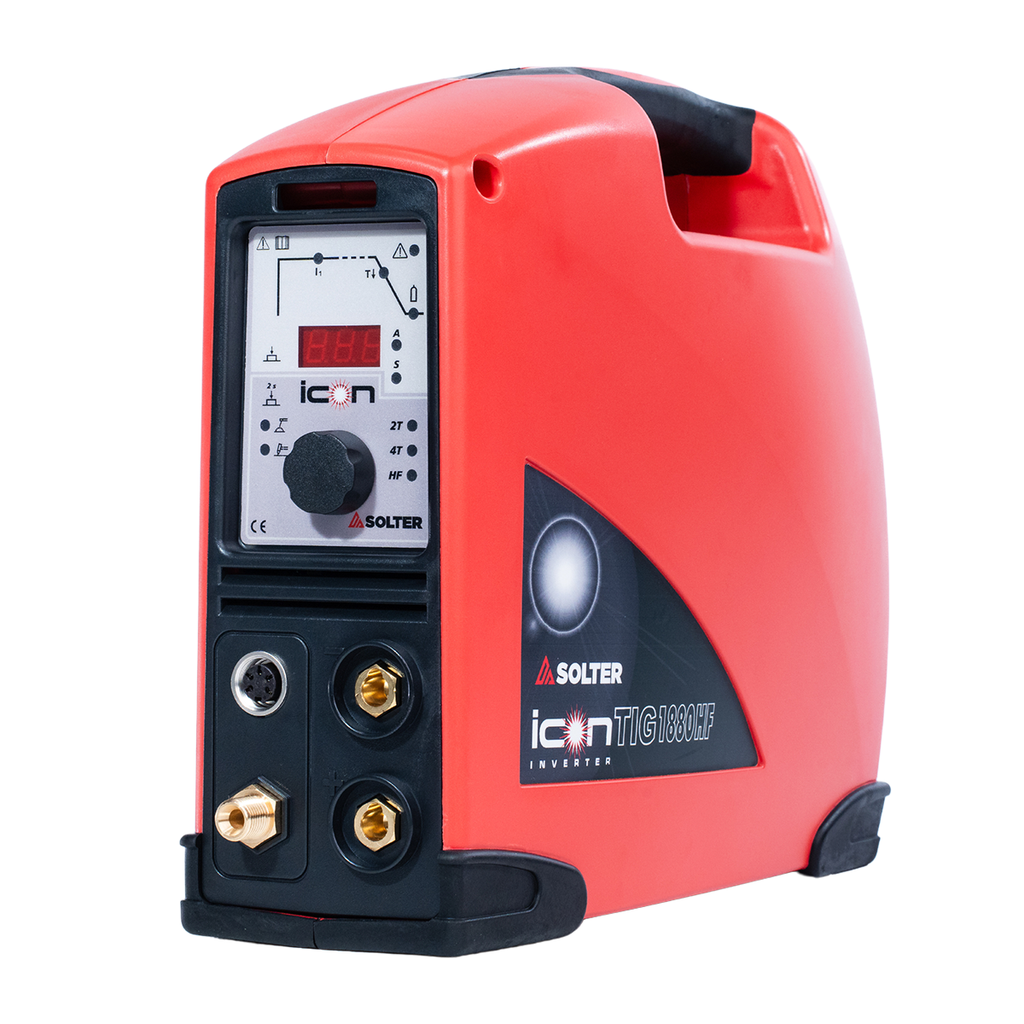

📌 The ICONTIG 1880 HF from Solter redefines professional welding with its advanced TIG DC technology and high-frequency (HF) ignition. Designed for those who demand precision and stability, this machine offers a current range of 10 A – 180 A and an optimized duty cycle, ensuring reliable performance even in demanding conditions.

Su construcción robusta con diseño DDR patentado proporciona una mayor resistencia a impactos, mientras que su peso ligero de solo 4,9 kg facilita el transporte. La compatibilidad con generadores eléctricos y su sistema de ventilación inteligente lo convierten en la herramienta ideal para mantenimiento industrial, fabricación metálica y trabajos en campo. Invest in technology, quality, and efficiency with Solter.







Share this product:

Main Features:

ARCSENSE Regulation: Ensures arc stability at all times, allowing precise control between the electrode and the material.

HF and Lift-Arc Ignition: Starts the arc without contact, preventing electrode contamination and ensuring a clean and stable weld.

Power and Performance: Range of 10 A - 180 A in TIG and 160 A in MMA, with an optimized duty cycle of 45% at 180 A, 60% at 140 A, and 100% at 110 A, ensuring precision and efficiency for long work sessions.

Advanced Functions: Includes Anti-Stick, Arc-Force, Hot-Start, and Lift-Arc/HF (TIG), optimizing arc stability, improving ignition, and preventing electrode sticking.

Dual Automatic Ventilation: Its intelligent cooling system activates only when necessary, reducing equipment wear and improving energy efficiency.

STAND-BY Mode: Saves energy by entering a low-power state when the equipment is not in use, extending the lifespan of its components.

Robust and Portable Design: With a weight of 4.9 kg, compact dimensions, and IP23C protection, it provides durability and easy transport for demanding industrial environments.

Generator Compatibility: Works with electric generators with a wide voltage range, allowing welding in any location without relying on a stable power grid.

💡 ICONTIG 1880 HF is the ultimate tool for professionals seeking precision, efficiency, and the latest technology in every weld.

General
Intensity at 60%(100%) a 40ºC 140A (110A)
Intensity MAX. 180A
Regulations 060974-1 , 060974-10
Regulation 10 - 180A
Duty Cycle at 40ºC 45%
Tech
Usable electrodes MMA 1,6mm - 4,0mm
Usable electrodes TIG 1,6mm - 2,4mm
Electric
Supply Voltage 230V-1ph
Fuse 16A
Absorved power max. 6,5KVA
Voltage range 10-180A (10,4 - 17,2V)
OCV 80V
Structural
Dimensions 320x135x285 mm
Protection index IP23C
Regulation board iCONTIG “basic”
Weight 4,9 kg
Ventilation Doble / Double AUTO
