Ref.
10132

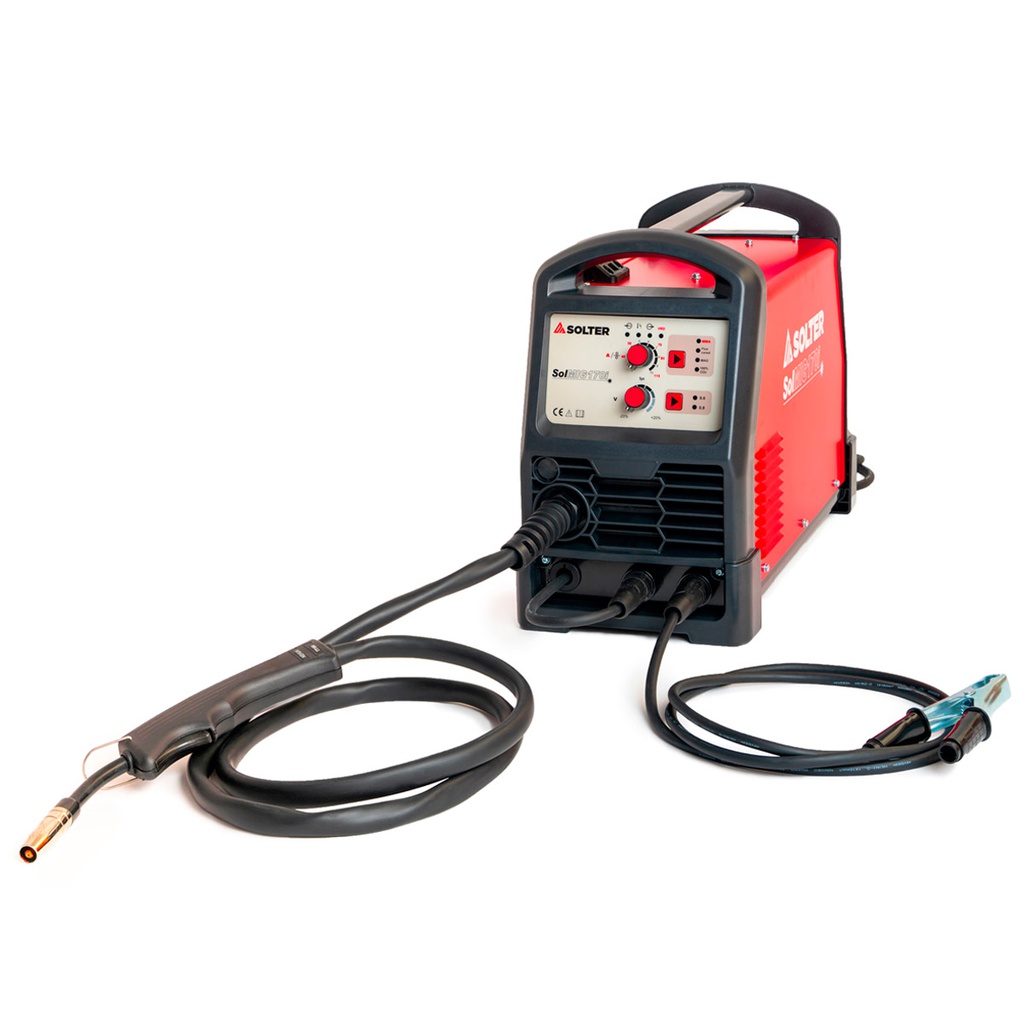

SOLMIG 170i
· Multiprocess (MIG/MAG - MMA -TIG).
· Wire welding with and without gas up to 0.8mm.
· 230V-1ph.
· Supports D200 (5kg).
· Includes earth clamp and MIG torch.
Share this product:
Available Packs
![[K0241] KIT MMA FLUX](/web/image/product.product/48537/image_1920/350x350)
Ref:
K0241
KIT MMA FLUX
460.00 €
460.00 €
![[K0248] KIT MULTIPROCESS SOLMIG 170](/web/image/product.product/48649/image_1920/350x350)
Ref:
K0248
KIT MULTIPROCESS SOLMIG 170
530.00 €
530.00 €
The SOLMIG-170 wire machine is a multiprocess equipment (MIG/MAG and Electrode) with Inverter technology, ideal for light work, designed to be easy and intuitive to use.
Their single-phase connection, as well as the possibility of using wire without external gas thanks to polarity inversion, give them enormous flexibility.
Both wire speed/power and arc height can be adjusted, which makes it possible to weld all kinds of thicknesses with very good results.
|
General
|
|
|---|---|
| Intensity at 60%(100%) a 40ºC | 90A (77A) |
| Intensity MAX. | 130A |
| Regulations | EN 60974-1 / EN 60974-10 Clase A |
| Regulation | 20-150A |
| Duty Cycle at 40ºC | 35% |
|
Tech
|
|
| Usable wire coil | D100 - 1kg , D200 - 5kg |
| Usable electrodes MMA | 1,6mm - 3,25mm |
| Usable welding wire | 0,6 - 0,8 mm |
| Wire feeder rolls | 2R |
|
Electric
|
|
| Supply Voltage | 230V-1ph |
| Fuse | 16A |
| Absorved power max. | 4Kva |
| OCV | 58V |
|
Structural
|
|
| Dimensions | 490x210x330mm |
| Protection index | IP 21S |
| Regulation board | SOLMIG DIGITAL |
| Weight | 10,15 kg |
| Ventilation | FORCED |
