Ref. 10133


1,199.00 € 1199.0 EUR Precio con iva: 1450.79 € 1,199.00 €

1,199.00 €

  • Cutting capacity ALUMINIUM
  • Cuttinh capaciity STEEL
  • Cutting capacity STAINLESS STEEL
  • Supply Voltage
  • Dimensions
  • Air flow
  • Protection index
  • Intensity at 60%(100%) a 40ºC
  • Intensity MAX.
  • Standards
  • Weight
  • Air pressure
  • Regulation
  • Duty Cycle at 40ºC
  • Ventilation
  • OCV
  • Imax

This combination does not exist.

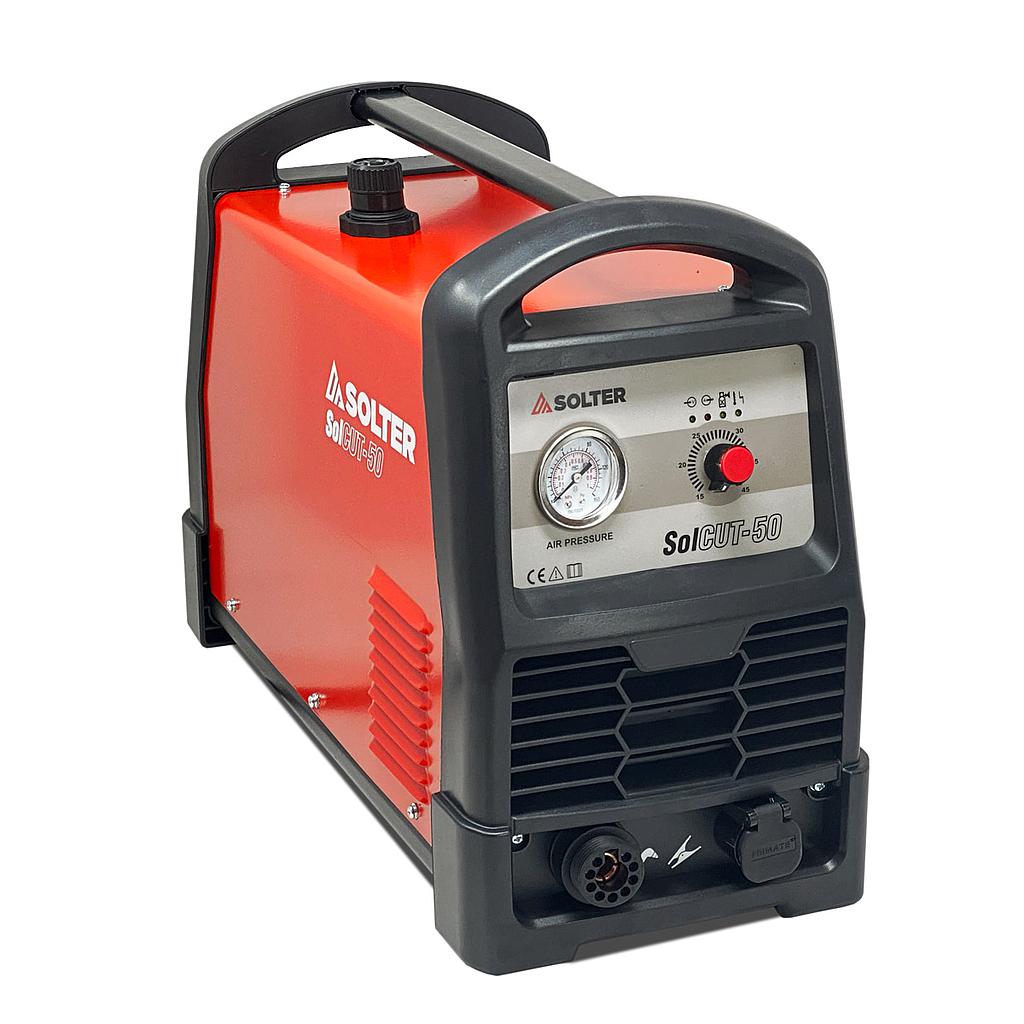

· 45Amp plasma cutting equipment.
· 230V-1ph connection.
· Cut up to 12mm.
· Complete with ground clamp and torch.

Share this product:

· Highly portable and versatile plasma cutting inverter equipment thanks to its 230V-1ph single-phase connection.
· With maximum cutting capacity and clean cut of up to 12 mm, it is the ideal system for industrial maintenance and repair work.
· Cutting all types of materials such as carbon steel, stainless steel and aluminum.

Intensity at 60%(100%) a 40ºC 40A (32A)
Intensity MAX. 45A
Regulation 10-45A
Duty Cycle at 40ºC 50%
Cutting capacity ALUMINIUM 12mm
Cuttinh capaciity STEEL 12mm
Cutting capacity STAINLESS STEEL 8mm
Air flow 150l/min
Air pressure 3.5-10bar
Supply Voltage 230V - 1Ph
OCV 310V
Imax 23A
Dimensions 504x213x314mm
Protection index IP21
Standards EN-60974
Weight 12 Kg
Ventilation FORZADA
