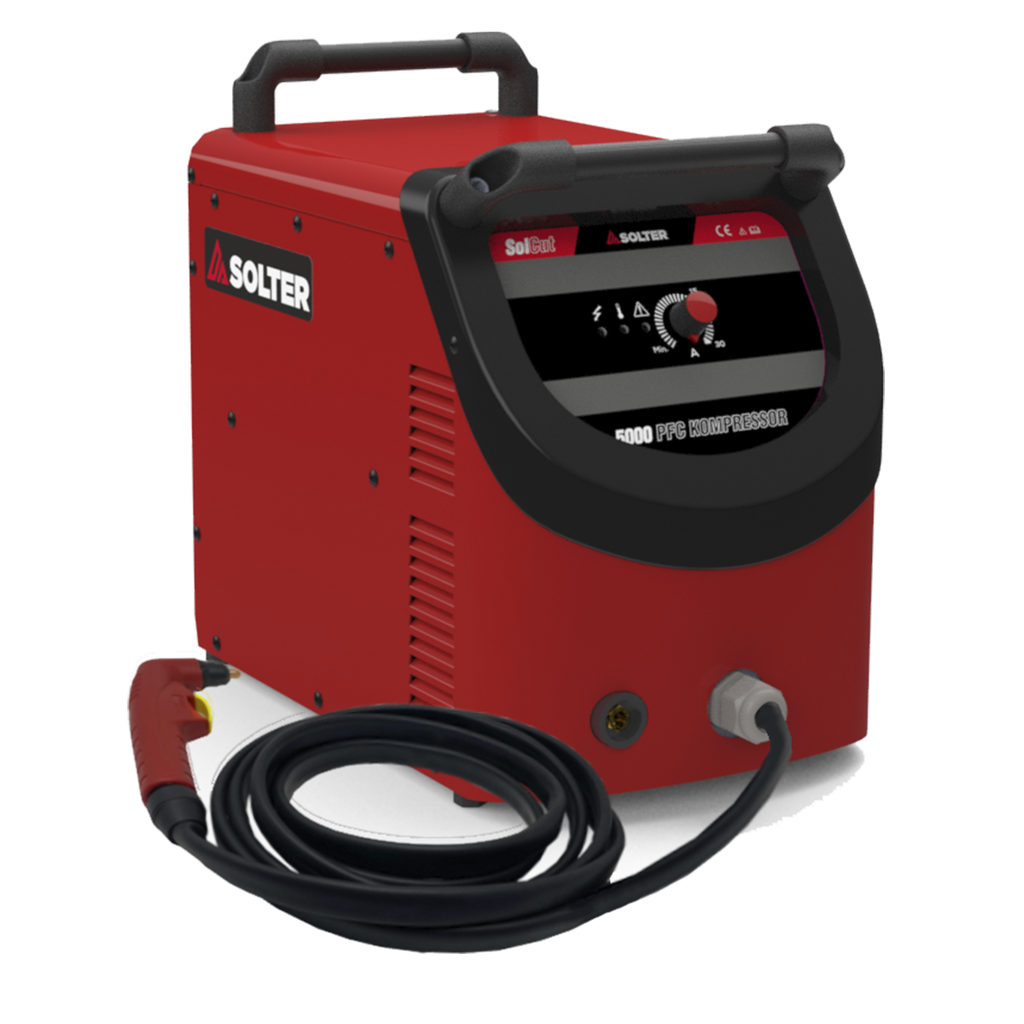

PLASMA SOLCUT 5000 KOMPRESSOR PFC
📌 The PLASMA SOLCUT 5000 KOMPRESSOR PFC is a machine designed to offer maximum autonomy and performance, incorporating an integrated air compressor that allows operation without the need for additional equipment. Its Inverter technology with PFC enhances energy efficiency and ensures a stable cutting arc, reducing power consumption. With a clean cutting capacity of up to 8 mm and a maximum of 12 mm, it is ideal for working on steel, aluminum, and stainless steel with high precision and a professional finish.
Share this product:
Main Features:
✅ Autonomous system with integrated compressor: Does not require an external compressor, providing greater independence and ease of use.
✅ Inverter technology with PFC: Ensures a more stable cutting arc, improves energy efficiency, and reduces power demand.
✅ Optimized cutting performance: Capable of making clean cuts up to 8 mm and maximum cuts of 12 mm, adapting to different materials.
✅ Energy efficiency and savings: Its design with PFC reduces power consumption by up to 30%, optimizing operating costs.
✅ Operation with standard connection: Powered by 230V single-phase, compatible with most electrical installations.
✅ Robust and portable design: Weighing 20 kg and measuring 440x270x350 mm, it allows for easy transport and storage.
✅ Longer consumable lifespan: Incorporates an automatic cooling system, preventing overheating and reducing maintenance.
✅ Operational stability with long cables: Allows the use of extensions of up to 50 meters without affecting the machine's performance.
✅ Quick start and easy handling: Intuitive design allows startup in seconds, without complex configurations.
✅ Compatible with optional accessories: Additional torches and consumables can be added to adapt the machine to different applications.
💡 A versatile, powerful cutting machine designed to optimize work with maximum efficiency and autonomy.
General
|
|
---|---|
Intensity MAX. | 30A |
Regulations | EN 60974-1 / EN 60974-10 Clase A |
Regulation | 5 - 30A |
Duty Cycle at 40ºC | 30A @ 100% |
Tech
|
|
Cutting capacity ALUMINIUM | 8mm |
Cuttinh capaciity STEEL | 8mm |
Cutting capacity STAINLESS STEEL | 5mm |
Compresor | Incorporado |
Electric
|
|
I₁max | 16A |
Absorved power max. | 3,7Kva |
Supply Voltage | 220-240V 1Ph |
OCV | 240V |
Structural
|
|
Dimensions | 440x270x350mm |
Protection index | IP21 |
Weight | 20 kg |
Ventilation | FORZADA |
