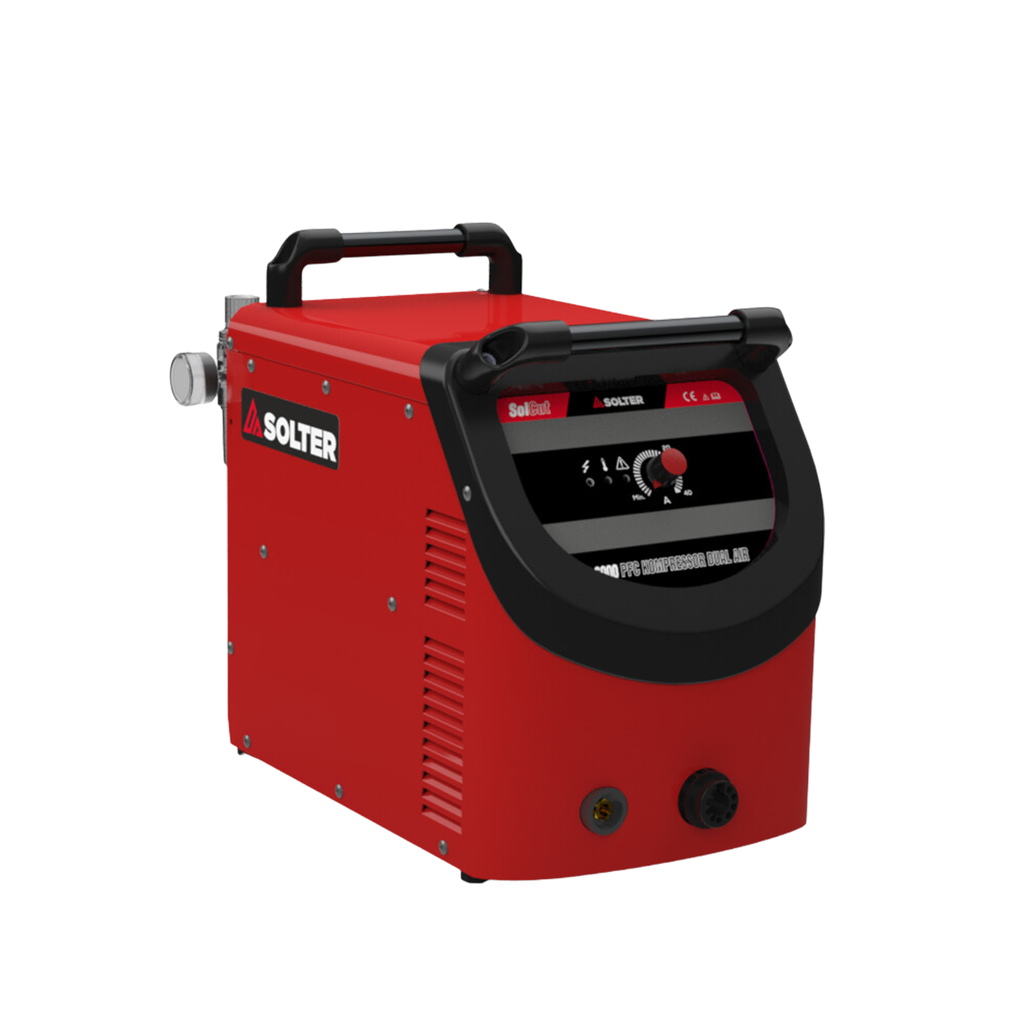

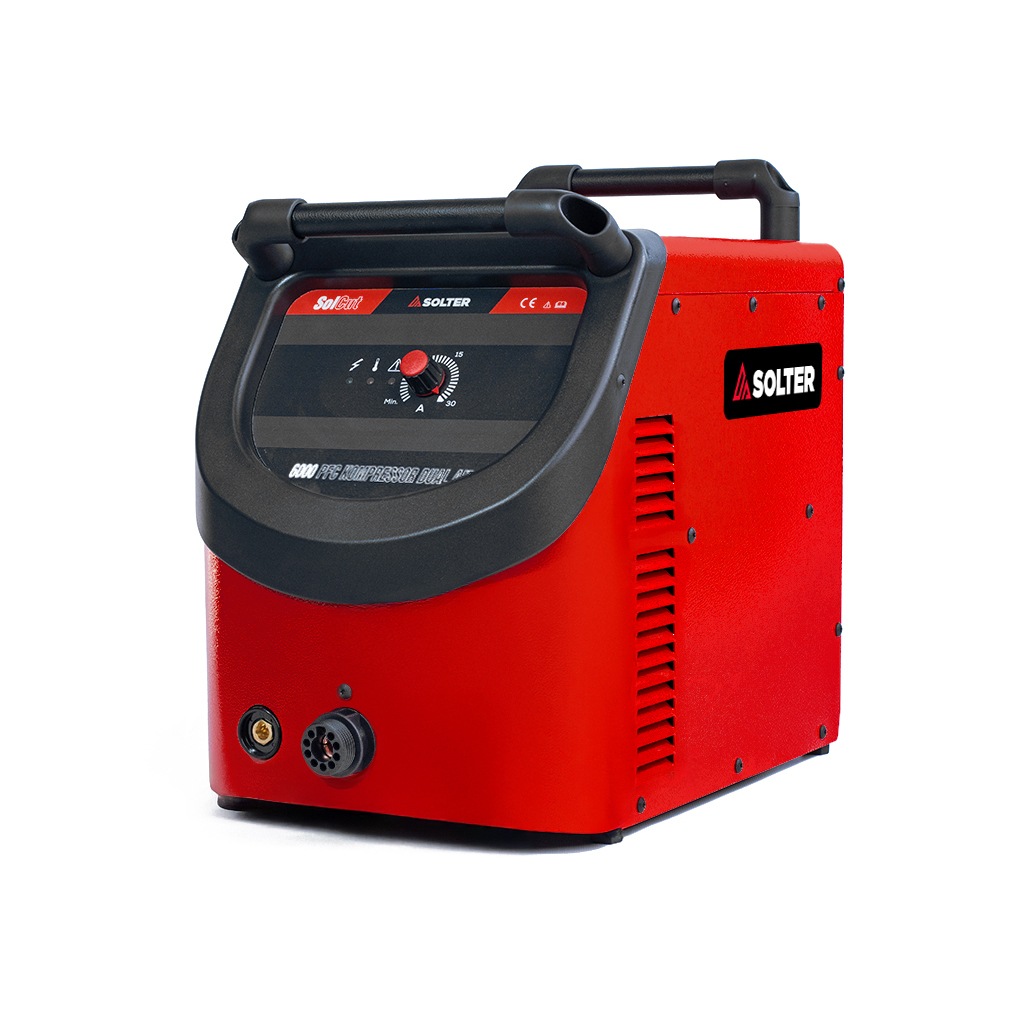

PLASMA SOLCUT 6000 KOMPRESSOR PFC DUAL

WELDING FANATICS

Main Features

· Power of 40A at 35%

· Connection 230V - 1ph

· Automatic torch cooling

· Includes air compressor for autonomous operation

· Clean cut up to 10 mm

· Maximum cut up to 15 mm

· Cutting of various types of metals and alloys

· Can be used with a power extension cable

Manuals:
MI03234 ES "SOLCUT PFC" MI03234 ENG "SOLCUT PFC" MI03234 PT "SOLCUT PFC" MI03234 DE.pdf "SOLCUT PFC" MI03234 FR.pdf "SOLCUT PFC" CERTIFICADO CE SOLCUT 6000K PFC DUAL

General
Intensity MAX.	40A
Regulations	EN 60974-1 / EN 60974-10 Clase A
Regulation	5 - 40A
Duty Cycle at 40ºC	40A @ 100%
Tech
Cutting capacity ALUMINIUM	10mm
Cuttinh capaciity STEEL	10mm
Cutting capacity STAINLESS STEEL	6mm
Caudal de aire	150l/min
Compresor	Incorporado
Air pressure	3,5 - 10 bar
Optimal aire pressure	4,5 bar
Electric
I₁max	20A
Absorved power max.	4,6Kva
Supply Voltage	220-240V 1Ph
OCV	240V
Structural
Dimensions	440x270x350mm
Protection index	IP21
Weight	23 kg
Ventilation	FORZADA
