Ref.
10520

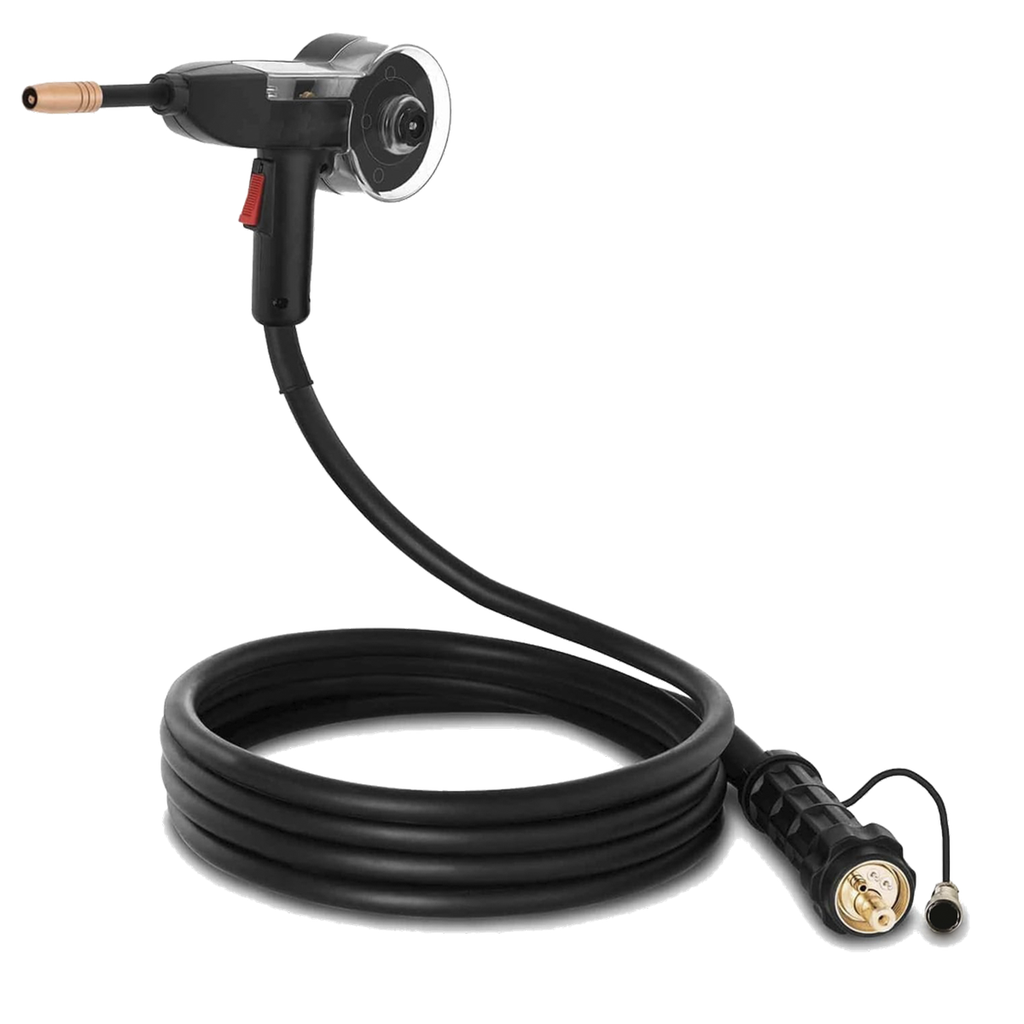

SPOOL GUN 6m
Spool Gun torch compatible with D100 diameter wire spools and drag built into the handle. 6m cable length. Thanks to its design (short distance between the wire spool, the drive motor and the torch tip) it is ideal for welding soft materials such as aluminium without the wire getting tangled. Perfect for industries where different welding materials are used for the same job, e.g. automotive.
Share this product:
Main features:
· Allows 0,8 mm aluminium wire to be welded on thin thicknesses
· Control of welding power from the torch
· Prevents twine entanglement in the driving motor
· Válida para Fe, Inox, Al y CuSi3
· Operates with independent gas
· Welding power up to 180A CO2/ 150A ArCO2 at 60%
· Power regulation by remote control
|
General
|
|
|---|---|
| Intensity MAX. | 180A CO2 / 150A Mixed Gases |
| Duty Cycle at 40ºC | 60% |
|
Tech
|
|
| Usable wire coil | D100 - 1kg |
|
Structural
|
|
| Weight | 3,7 kg |
|
Uncategorized
|
|
| Hilo utilizable gas | 0,8mm |
| Medidas | 450x250x90mm |
