Main features:

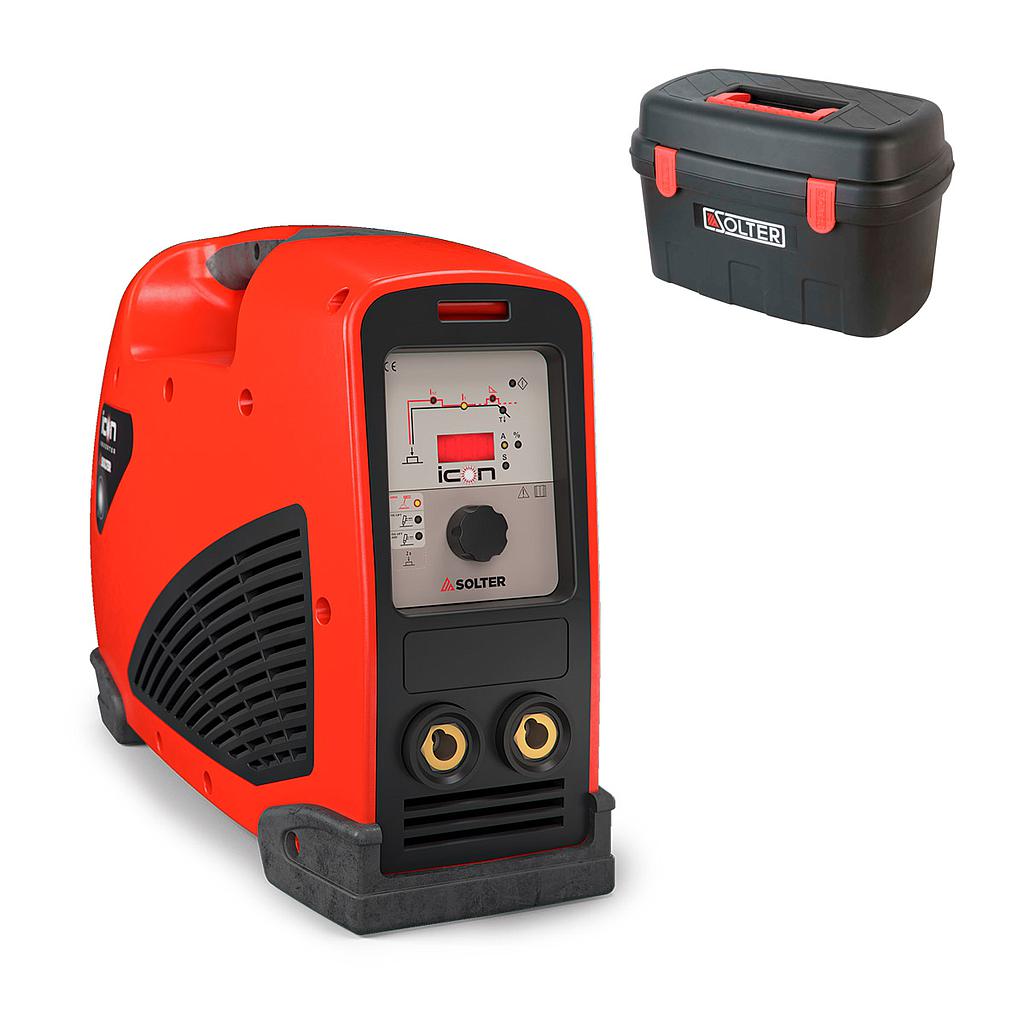

Talking about professional welding is talking about the iCON product line. Due to its patented and innovative DDR construction design, due to its great capacity to work under intensive conditions and demanding environments and due to its unmatched results in terms of reliability and performance, this is undoubtedly the best option for the most demanding professionals.
· Estabilidad y control de arco con independencia de la distancia electrodo-material, gracias a la regulación por Arc-Sense.
· Doble ventilación automática, actuando únicamente cuando el equipo lo precisa.
· Posición stand-by, cuando el equipo no se encuentra en funcionamiento.
· Equipado con los dispositivos Anti-Stick , Arc-Force, Hot-Start y Lift-Arc (TIG).
· Se puede conectar a generadores con un amplio rango de voltajes de trabajo.
|
General
|
|
|---|---|
| Intensity at 60%(100%) a 40ºC | 200A (140A) |
| Intensity MAX. | 200A |
| Regulations | EN-60974-1, EN-60974-10 |
| Regulation | 10 - 200A |
| Duty Cycle at 40ºC | 60% |
|
Tech
|
|
| Usable electrodes MMA | 1,6 - 4,00 mm |
| Usable electrodes TIG | 1,0 - 3,2 mm |
|
Electric
|
|
| Supply Voltage | 230V - 1Ph |
| Fuse | 16A |
| Ieff | 29,7A |
| Absorved power max. | 9,5KVA |
| Voltage range | 180V - 300V |
| OCV | 68V |
| I₁max | 42A |
|
Structural
|
|
| Dimensions | 430x175x325mm |
| Protection index | IP23C |
| Regulation board | SOLTER ICON DIGITAL |
| Weight | 6,4Kg |
| Ventilation | DOBLE - AUTO |
