Principales características:

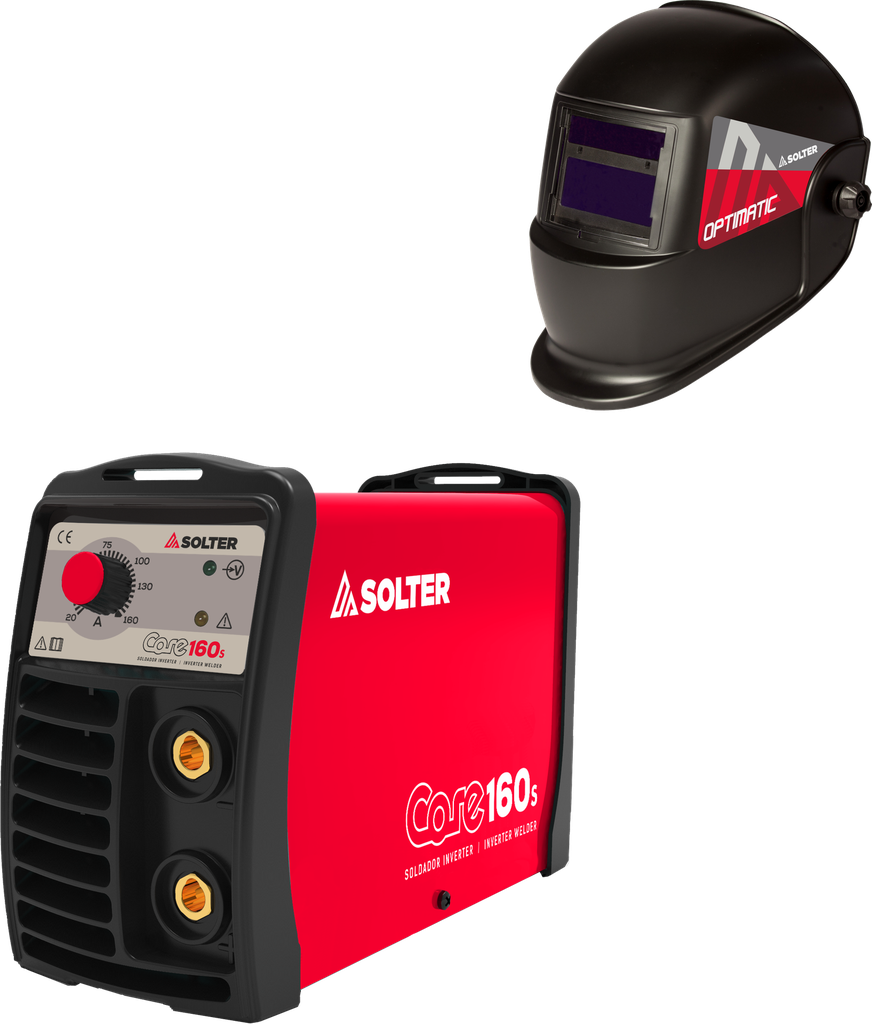

The CORE models are INVERTER equipment for welding with covered electrodes and TIG, which apply the new nanocrystaline technology, achieving an unbeatable weight-performance ratio. All this, at an extremely competitive price.
· New "Nanocrystaline" technology, smaller, more powerful, lighter
· Ease of use thanks to INVERTER technology supplying direct current DC.
· Minimum consumption due to its high energy efficiency.
· Connectable to generators with a wide range of voltages of use.
· Equipped with Arc-Force and Hot-Start devices.
· Possibility of TIG welding.
|
General
|
|
|---|---|
| Duty Cycle at 40ºC | 60% |
| Regulation | 20A - 160A |
| Intensity MAX. | 160A |
| Intensity at 60%(100%) a 40ºC | 140A (115A) |
| Regulations | EN60974-1, EN60974-10 |
|
Tech
|
|
| Usable electrodes TIG | 1,0 - 2,4mm |
| Usable electrodes MMA | 1,6mm - 3,25mm |
|
Electric
|
|
| I₁max | 30A |
| OCV | 68V |
| Voltage range | 190 - 265V |
| Absorved power max. | 6,9Kva |
| Ieff | 17,7A |
| Fuse | 16A |
| Supply Voltage | 230V - 1Ph |
|
Structural
|
|
| Ventilation | FORCED |
| Weight | 3.1 kg |
| Regulation board | SOLTER |
| Protection index | IP21S |
| Dimensions | 315x102x176mm |
|
Technologies
|
|
| Tecnologies | Anti STICK , Arc Force , Hot-Start , Generator OK |
